| Specification | Value |
|---|---|
| Active or Passive | Passive |
| System Type | Array Element |
| Configuration | 2-way |
| System Continuous Power | Passive: 400 W / Bi-amp LF: 400 W / Bi-amp HF: 75 W |
| System Programme Power | Passive: 800 W / Bi-amp LF: 800 W / Bi-amp HF: 150 W |
| System Peak Power | Passive: 1600 W / Bi-amp LF: 1600 W / Bi-amp HF: 300 W |
| Max SPL @ 1m | 132 dB |
| Freq Response (+/-3 dB) | 70 Hz – 20 KHz |
| Freq Range (-10 dB) | 65 Hz – 20 KHz |
| Bi-amp Mode Switch | Yes |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 2 x 8" |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| LF Voice Coil Size | 2″ |
| LF Rated Impedance | 8 Ω |
| LF Power (RE:AES2-2012) | 2 x 200 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 3.2" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1.4″ |
| HF Power (RE:AES2-2012) | 80 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | Yes |

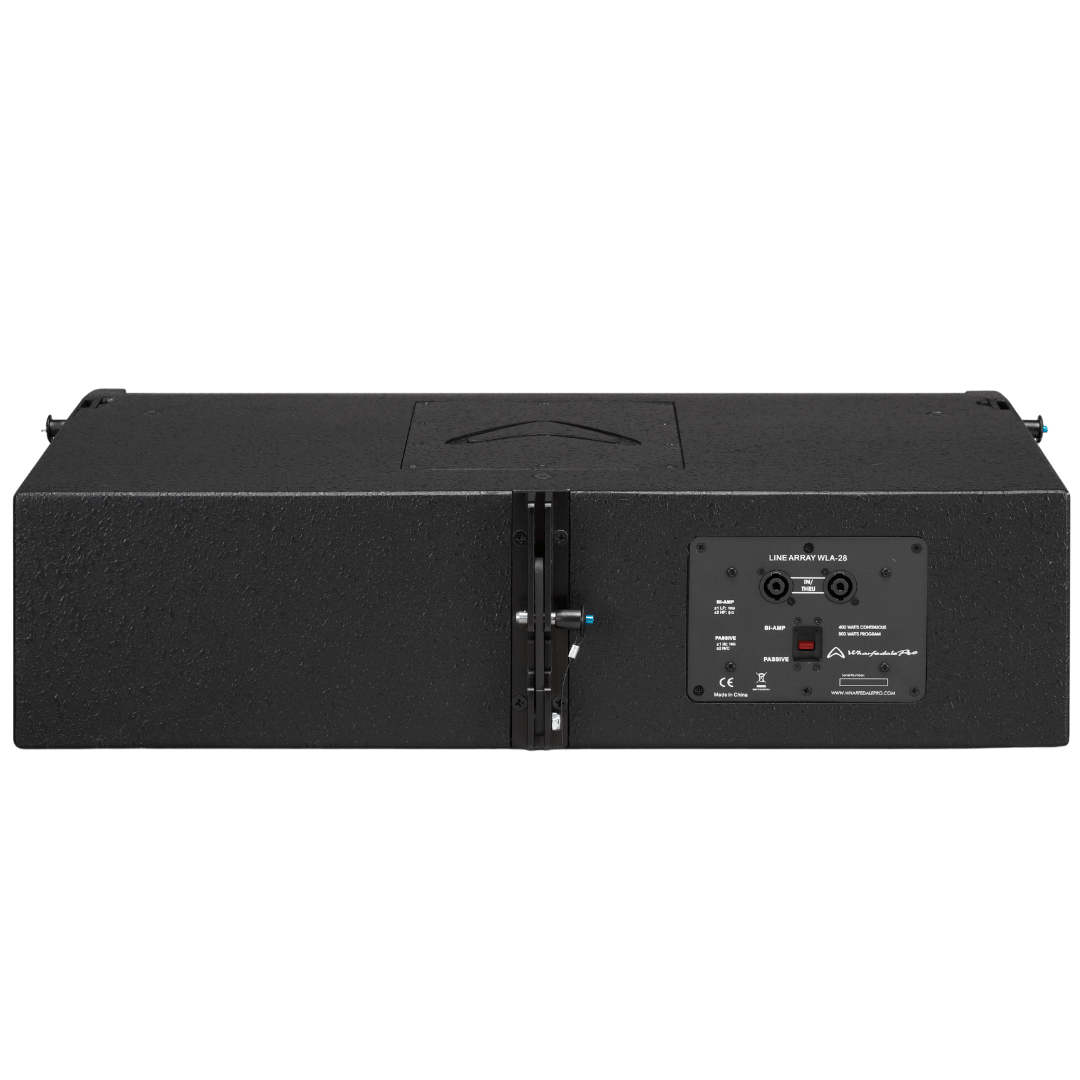

| Input Connector | 2 x 4 Pole speaker connector |
| Waveguide Type | Coherent Array Shaping Technology (CAST) |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Steel Black |
| Finish | Rhino Black Paint |
| Handles | 2 |
| Deployment | Ground, Flying |
| Pole Mount | None |
| Rigging | Yes |
| Integral Rigging | 3 Points |
| Nominal Coverage (H x V) | 100° x System dependant |
| Sensitivity 2.83 V / 1 m | 100 dB |
| System Rated Impedance | 16 Ω |
| Crossover Frequency | 1.8 KHz |
| Recommended HPF = BW 18 dB/OCT. | 65 Hz |
| Included Accessory | User Manual |
| Unpacked - Front Height (mm) | 250 |
| Unpacked - Rear Height (mm) | 188 |
| Unpacked - Width Front (mm) | 760 |
| Unpacked - Width Rear (mm) | 760 |
| Unpacked - Depth (mm) | 424 |
| Packed - Height (mm) | 375 |
| Packed - Width Front (mm) | 545 |
| Packed - Width Rear (mm) | 545 |
| Packed - Depth (mm) | 855 |
| Weight - Nett (kg) | 27 |
| Weight - Gross (kg) | 34.03 |

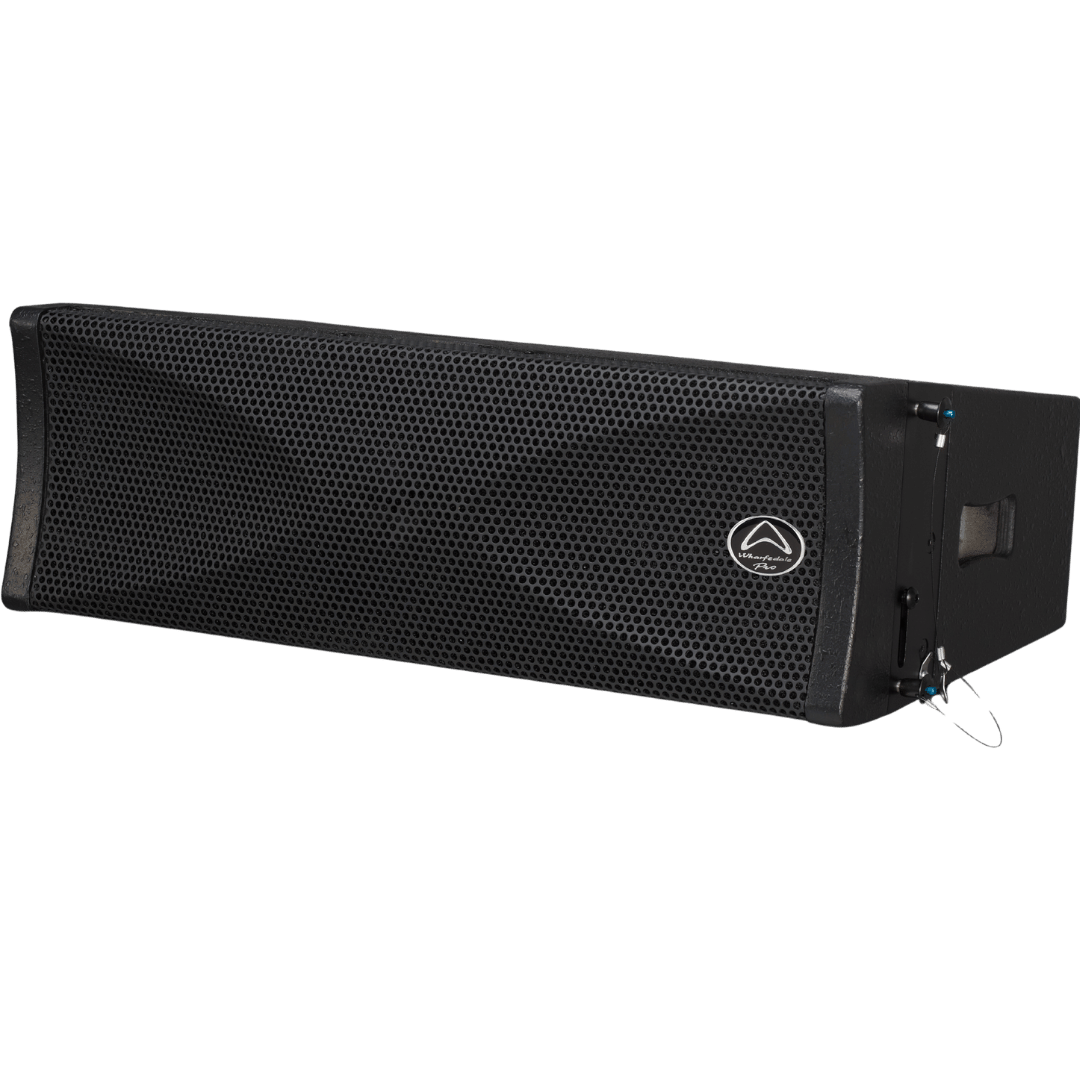

WLA-28
Dual 8" line array element
Legacy
WLA-28
Dual 8" line array element
WLA-28 is a dual 8″ line array element designed for touring and installation environments that demand clarity, output and consistent performance. Engineered for versatility and reliability, it delivers a balanced combination of power, coverage and control for scalable professional systems.
It features two 8″ LF drivers paired with a 3.2″ HF compression driver, delivering strong low-frequency response and detailed high-frequency reproduction. With a maximum SPL of 132 dB, the system provides ample headroom for high-output applications while maintaining clarity across the full frequency range.

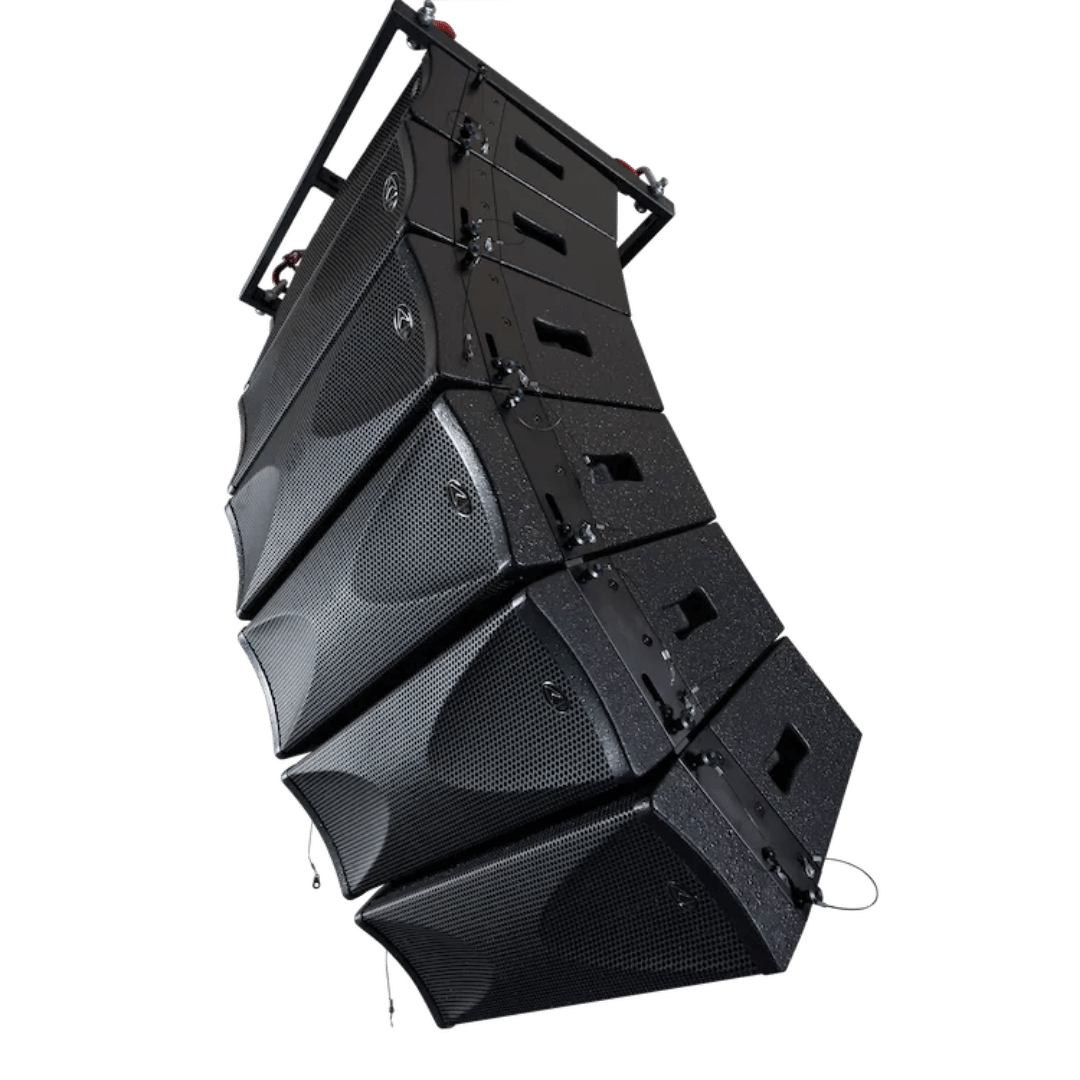

Constructed from 15 mm birch plywood, the enclosure is built for durability in demanding rental and touring environments. Integral side plate adjustable rigging allows secure and flexible deployment, supporting a wide range of flown array configurations.
OVERVIEW
| Name | Type | File |
|---|---|---|
| EASE Library V7.5 | Software | Download |
| Wharfedale Pro Preset Library | Software | Download |
| WLA-218BA Series Quick Start Guide | Quick Start Guide | Download |
| WLA-218BA Series Quick Start Guide (German) | Quick Start Guide | Download |
| WLA-218BF Single Page User Manual | User Manual | Download |
| WLA-218BF User Manual | User Manual | Download |
| WLA-218BX Single Page User Manual (German) | User Manual | Download |
| WLA-218BX User Manual | User Manual | Download |
| WLA-28 / WLA-15B / WLA-28SUB / WLA-218B / WLA-218SUB Operating Manual and User Guide | User Guide | Download |

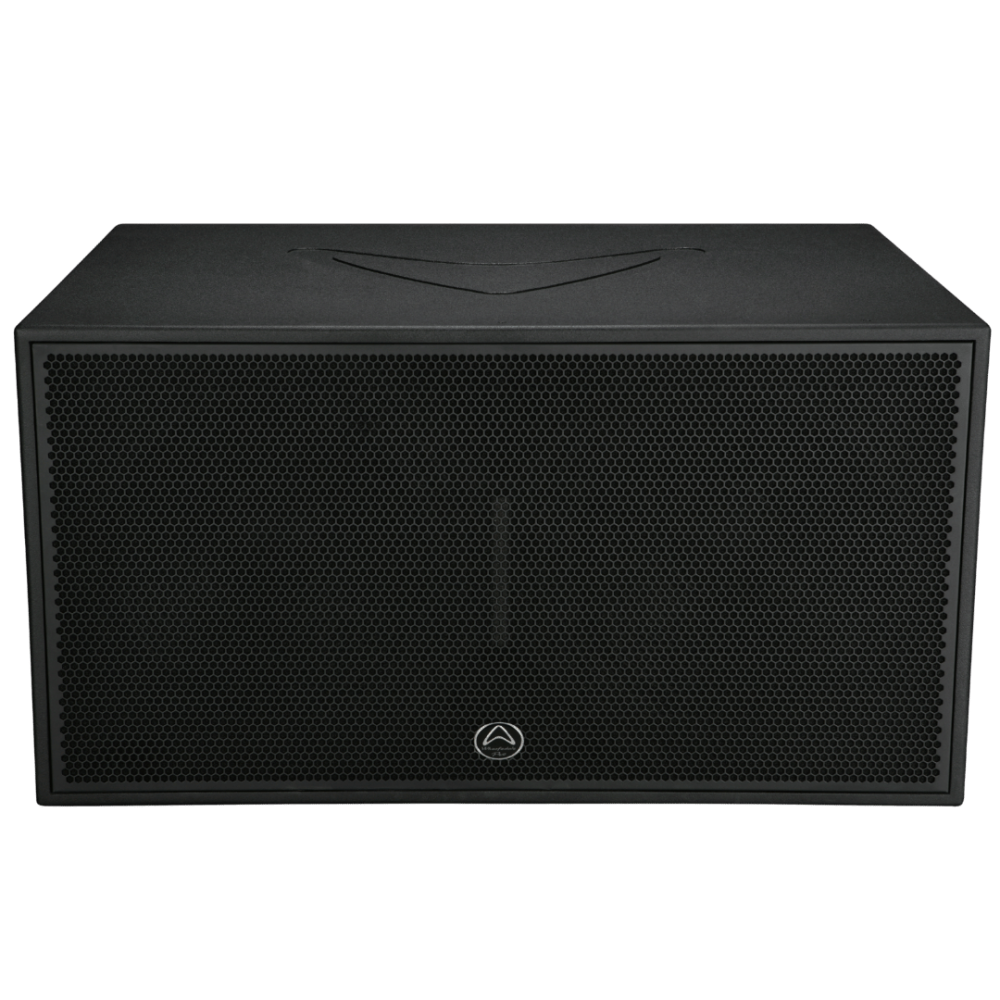

| Specification | WLA-218SUB | WLA-28X | WLA-218B (legacy) | WLA-28 (legacy) |
|---|---|---|---|---|
| Catch Line | Dual 18″ subwoofer with Parallel and Discrete modes | Dual 8" line array element | Dual 18″ subwoofer, designed for ground placement | Dual 8" line array element |
| Active or Passive | Passive | Passive | Passive | Passive |
| System Type | Subwoofer | Array Element | Subwoofer | Array Element |
| Configuration | Bass-reflex | 2-way | Bass-reflex | 2-way |
| System Continuous Power | Parallel: 1600 W / Discrete: 800 W | Passive: 400 W / Bi-amp LF: 400 W / Bi-amp HF: 90 W | 2000 W | Passive: 400 W / Bi-amp LF: 400 W / Bi-amp HF: 75 W |
| System Programme Power | Parallel: 3200 W / Discrete: 1600 W | Passive: 800 W / Bi-amp LF: 800 W / Bi-amp HF: 180 W | 4000 W | Passive: 800 W / Bi-amp LF: 800 W / Bi-amp HF: 150 W |
| System Peak Power | Parallel: 6400 W / Discrete: 3200 W | Passive: 1600 W / Bi-amp LF: 1600 W / Bi-amp HF: 360 W | 8000 W | Passive: 1600 W / Bi-amp LF: 1600 W / Bi-amp HF: 300 W |
| Max SPL @ 1m | 138 dB | 132 dB | 148 dB | 132 dB |
| Freq Response (+/-3 dB) | 30 Hz – 1.5 KHz | 70 Hz – 20 KHz | 30Hz – 1kHz | 70 Hz – 20 KHz |
| Freq Range (-10 dB) | 30 Hz – 1.5 KHz | 65 Hz – 20 KHz | 25Hz – 800Hz | 65 Hz – 20 KHz |
| Bi-amp Mode Switch | Yes | Yes | ||
| Driver Brand | Wharfedale Pro | Wharfedale Pro | Wharfedale Pro | Wharfedale Pro |
| LF Driver Size | 2 x 18" | 2 x 8" | 2 x 18" | 2 x 8" |
| LF Magnet Material | Ferrite | Ferrite | Ferrite | Ferrite |
| LF Frame Material | Aluminium | Aluminium | Aluminium | Aluminium |
| LF Voice Coil Size | 4” | 2″ | 4″ | 2″ |
| LF Rated Impedance | 2 x 8 Ω | 8 Ω | 2 x 8 Ω | 8 Ω |
| LF Power (RE:AES2-2012) | 2 x 800 W | 2 x 200 W | 2 x 1000 W | 2 x 200 W |
| HF Driver Type | Compression Driver | Compression Driver | ||
| HF Voice Coil Size | 3.2" | 3.2" | ||
| HF Diaphragm Material | Titanium | Titanium | ||
| HF Exit Size | 1.4″ | 1.4″ | ||
| HF Power (RE:AES2-2012) | 80 W | 80 W | ||
| HF Rated Impedance | 8 Ω | 8 Ω | ||
| Preset Library | Yes | Yes | ||
| Input Connector | 2 x 4 Pole Speaker Connector | 2 x 4 Pole speaker connector | 2 x speakON Compatible | 2 x 4 Pole speaker connector |
| Waveguide Type | Coherent Array Shaping Technology (CAST) | Coherent Array Shaping Technology (CAST) | ||
| Cabinet Type | Square | Square | ||
| Enclosure Material | Birch Plywood | Birch Plywood | Birch Plywood | Birch Plywood |
| Grille Material and Finish | Steel | Steel Black | Steel | Steel Black |
| Finish | Black Paint | Black Tough-Tone | Rhino Black Paint | Rhino Black Paint |
| Handles | 4 | 2 | 4 | 2 |
| Deployment | Ground | Ground, Flying | Ground | Ground, Flying |
| Rigging | Yes | Yes | ||
| Integral Rigging | 3 Points | 3 Points | ||
| Nominal Coverage (H x V) | 100° x System dependant | 100° x System dependant | ||
| Sensitivity 2.83 V / 1 m | 100 dB | 100 dB | 109 dB | 100 dB |
| System Rated Impedance | Parallel: 4 Ω / Discrete: 2 x 8 Ω | Passive: 16 Ω / Bi-amp LF: 16 Ω / Bi-amp HF: 16 Ω | 4 Ω | 16 Ω |
| Crossover Frequency | Preset Dependent | 1.8 KHz | 1.8 KHz | |
| Recommended HPF = BW 18 dB/OCT. | 30 Hz | 65 Hz | 25 Hz | 65 Hz |
| Included Accessory | User Manual | User Manual | User Manual | User Manual |
| Unpacked - Front Height (mm) | 541 | 250 | 560 | 250 |
| Unpacked - Rear Height (mm) | 541 | 188 | 560 | 188 |
| Unpacked - Width Front (mm) | 1041 | 760 | 1065 | 760 |
| Unpacked - Width Rear (mm) | 1041 | 760 | 1065 | 760 |
| Unpacked - Depth (mm) | 650 | 424 | 756 | 424 |
| Packed - Height (mm) | 640 | 534 | 640 | 375 |
| Packed - Width Front (mm) | 730 | 830 | 835 | 545 |
| Packed - Width Rear (mm) | 730 | 545 | 835 | 545 |
| Packed - Depth (mm) | 1135 | 320 | 1140 | 855 |
| Weight - Nett (kg) | 67 | 29.5 | 74.3 | 27 |
| Weight - Gross (kg) | 81 | 32 | 88.2 | 34.03 |
