| Specification | Value |
|---|---|
| Inputs | 3 |
| Outputs | 6 |
| Input Type | USB / RS232 and RS485 |
| Controller Data Connection | USB / RS232 and RS485 |
| Input Connections | XLR |
| Output Connections | XLR |
| Input Effects | Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8PEQ, 31 band graphic EQ, Phase, Delay |
| Output Effects | Crossover, 5PEQ, Gain, Mute, Compressor / Limiter, Phase, Delay, Link |
| Max Output Level | +20 dBu |
| Frequency Response | 20 Hz – 20 KHz |
| SNR | >115 dB |
| THD+N | <0.005 at 1 KHz (0 dBu) |
| Digital Processing | 40-bit internal processing |
| Processor | 40-bit |
| AD/DA Converter | 24 bit / 96 KHz |
| Software Included | Yes |
| User Presets | 20 |
| Total Units Linkable | 255 via RS485 and optional wireless router |
| Ethernet | Yes |
| RS232 Port | Yes |
| Impedance | <500 Ω |
| Sampling Rate | 96 KHz |
| Display Type | 20 x 2 LCD Parameter / Function Display, 5-Segment Led Level Display |
| Password Protected | Yes |
| Power Supply | 95V-250V |
| Included Accessory | Power Cable, User Manual |
| Unpacked - Height (mm) | 45 |
| Unpacked - Width Front (mm) | 480 |
| Unpacked - Width Rear (mm) | 480 |
| Weight - Nett (kg) | 2.62 |

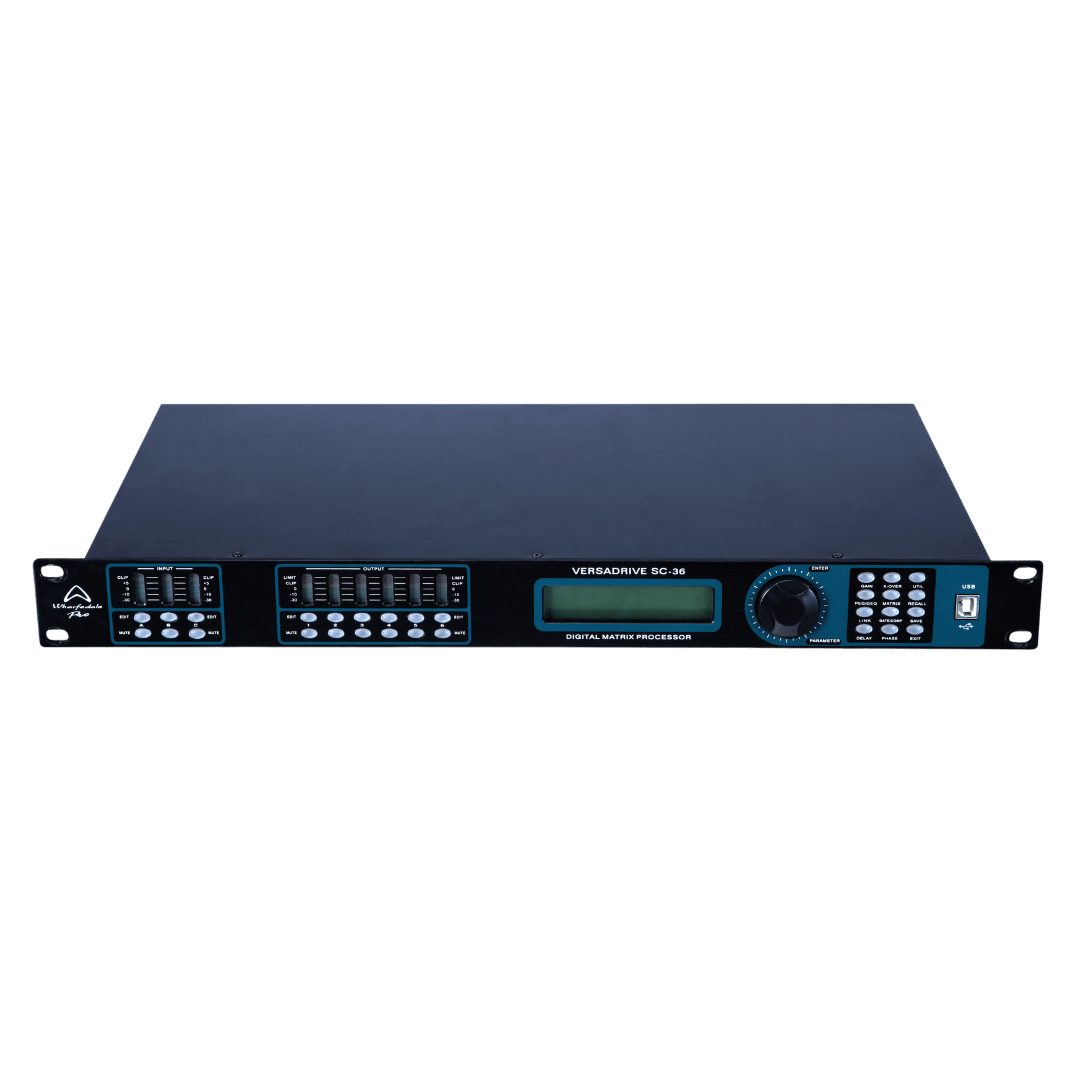

VERSADRIVE SC-36
Take back Control
Legacy
VERSADRIVE SC-36
Take back Control
Complete digital sound processing solutions
8-band parametric EQ with low/high shelf
Limiter / Crossover / Filters
Independent processing for each output channel
Password protection for venue install
24-bit 96 KHz AD/DA convertors
OVERVIEW
No accessories found.
| Name | Type | File |
|---|---|---|
| VERSADRIVE SC-24 / VERSADRIVE 36 / VERSADRIVE 48 User Manual Legacy | User Manual | Download |
| VERSADRIVE SC-24 DSP Processor Software Editor V1.04 Legacy | Software | Download |
| VERSADRIVE SC-26 DSP Processor Software Editor V4.01 Legacy | Software | Download |
| VERSADRIVE SC-26 User Manual Legacy | User Manual | Download |
| VERSADRIVE SC-26X DSP Processor Software Editor V1.06 | Software | Download |
| VERSADRIVE SC-26X User Manual | User Manual | Download |
| VERSADRIVE SC-26X User Manual (German) | User Manual | Download |
| VERSADRIVE SC-36 DSP Processor Software Editor V1.04 Legacy | Software | Download |
| VERSADRIVE SC-48 DSP Processor Software Editor V1.04 Legacy | Software | Download |
| VERSADRIVE SC-48 FIR DSP Processor Software Editor V1.0 | Software | Download |
| VERSADRIVE SC-48 FIR User Manual | User Manual | Download |
| VERSADRIVE SC-48 FIR User Manual (German) | User Manual | Download |
| Wharfedale Pro Preset Library | Software | Download |
| Specification | VERSADRIVE SC-26X | VERSADRIVE SC-48 FIR | VERSADRIVE SC-24 (legacy) | VERSADRIVE SC-26 (legacy) | VERSADRIVE SC-36 (legacy) | VERSADRIVE SC-48 (legacy) |
|---|---|---|---|---|---|---|
| Catch Line | Take back Control | Think Dif FIR ently | Take back Control | Take back Control | Take back Control | Take back Control |
| EQ Type | 8-band parametric EQ with low/high shelf | 6-band parametric / low shelf / high shelf | 8-band parametric EQ with low/high shelf | |||
| Max Input Level | +18 dBu | |||||
| Inputs | 2 | 4 | 2 | 2 | 3 | 4 |
| Outputs | 6 | 8 | 4 | 6 | 6 | 8 |
| Input Type | Analog | USB / RS232 and RS485 | USB / RS232 and RS485 | Analog | USB / RS232 and RS485 | USB / RS232 and RS485 |
| Controller Data Connection | Dante® | USB / RS232 and RS485 | USB / RS232 and RS485 | USB / RS232 and RS485 | ||
| Input Connections | XLR | XLR | XLR | XLR | XLR | XLR |
| Output Connections | XLR | XLR | XLR | XLR | XLR | XLR |
| Input Impedance | Balanced : 20 KΩ | Balanced 500 KΩ, Unbalanced <500 KΩ | <500 Ω | <500 Ω | ||
| Output Impedance | Balanced : 100 KΩ | |||||
| Input Effects | Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8-band parametric EQ, 31 band graphic EQ, Phase, Delay | Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8-band parametric EQ, 31 band graphic EQ, Phase, Delay | Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8PEQ, 31 band graphic EQ, Phase, Delay | Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8-band parametric EQ, 31 band graphic EQ, Phase, Delay | Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8PEQ, 31 band graphic EQ, Phase, Delay | Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8PEQ, 31 band graphic EQ, Phase, Delay |
| Output Effects | Crossover, 5-band parametric EQ, Gain, Mute, Compressor / Limiter, Phase, Delay , Linking | Crossover, 5-band parametric EQ, Gain, Mute, Compressor / Limiter, Phase, Delay, Linking | Crossover, 5PEQ, Gain, Mute, Compressor / Limiter, Phase, Delay, Link | Crossover, 5-band parametric EQ, Gain, Mute, Compressor / Limiter, Phase, Delay , Linking | Crossover, 5PEQ, Gain, Mute, Compressor / Limiter, Phase, Delay, Link | Crossover, 5PEQ, Gain, Mute, Compressor / Limiter, Phase, Delay, Link |
| Max Output Level | +20 dBu | +20 dBu | +20 dBu | +20 dBu | ||
| Input Range | ≤ +16.3 dBu | |||||
| Frequency Response | 19.7 Hz – 20 KHz (+/- 0.5 dB) | 20 Hz-20 KHz，-0.3 dBu | 20 Hz – 20 KHz | 20 Hz – 20 KHz | 20 Hz – 20 KHz | 20 Hz – 20 KHz |
| FIR | Yes | |||||
| PC Port | Yes | Yes | Yes | |||
| CMRR | >70 dB (1 KHz) | |||||
| SNR | >104 dB | >115 dBu | >115 dB | >110 dB | >115 dB | >115 dB |
| THD+N | < 0.01% (Output = 0 dBu / 1 KHz) | <0.005 at 1 KHz (0 dBu) | <0.005 at 1 KHz (0 dBu) | <0.005 at 1 KHz (0 dBu) | <0.005 at 1 KHz (0 dBu) | |
| Channel Separation | > 100 dB (1 KHz) | |||||
| Digital Processing | 24-bit sigma-delta，96 KHz sampling rate | 40-bit internal processing | 40-bit internal processing | 40-bit internal processing | 40-bit internal processing | |
| Processor | 32-bit | 40-bit | 40-bit | 40-bit | 40-bit | |
| AD/DA Converter | 24-bit, 96 KHz | 24-bit 96 KHz | 24 bit / 96 KHz | 24 bit / 96 KHz | 24-bit 96 KHz | |
| Software Included | Yes | Yes | Yes | Yes | Yes | Yes |
| User Presets | Yes | 20 | 20 | 20 | ||
| Total Units Linkable | 255 via RS485 and optional wireless router | 255 via RS485 and optional wireless router | 255 via RS485 and optional wireless router | |||
| Ethernet | Yes | Yes | Yes | Yes | ||
| RS232 Port | Yes | Yes | Yes | Yes | Yes | |
| Impedance | Balanced : 100 KΩ | Balanced 500 KΩ, Unbalanced <500 KΩ | <500 Ω | <500 Ω | <500 Ω | |
| Crosstalk | <100 dB below full scale | |||||
| D/A Converters | 24-bit Sigma Delta | 24-bit Sigma Delta | 24-bit Sigma Delta | |||
| Sampling Rate | 96 KHz | 96 KHz | 96 KHz | 96 KHz | ||
| Delay Time Range | 0.021 ms | 0-1000 ms | 0.021 ms | |||
| Filter Types | Linkwitz-Riley, Bessel, Butterworth up to 48 dB/oct. | |||||
| Memory | 30 save slots | |||||
| Display Type | 2 x 24 LCD backlight display. 5-band LED display. Mute / Editing status | 20 × 2 LCD Display | 20 x 2 LCD Parameter / Function Display, 5-Segment Led Level Display | 20 x 2 LCD Parameter / Function Display, 5-Segment Led Level Display | 20 x 2 LCD Parameter / Function Display, 5-Segment Led Level Display | 20 x 2 LCD Parameter / Function Display, 5-Segment Led Level Display |
| Password Protected | Yes | Yes | Yes | Yes | Yes | Yes |
| USB | 1 (PC Control) | 1 (PC Control) | 1 (PC Control) | 1 (PC Control) | 1 (PC Control) | 1 (PC Control) |
| Main Power | AC 110 V / 220 V 50 / 60 Hz | |||||
| Power Supply | 95V-250V | 95V-250V | 95V-250V | 95V-250V | ||
| Included Accessory | Power Cable, User Manual | Power Cable, User Manual | Power Cable, User Manual | Power Cable, User Manual | Power Cable, User Manual | Power Cable, User Manual |
| Unpacked - Height (mm) | 44 | 45 | 45 | 44 | 45 | 45 |
| Unpacked - Width Front (mm) | 482 | 480 | 480 | 482 | 480 | 480 |
| Unpacked - Width Rear (mm) | 482 | 480 | 480 | 482 | 480 | 480 |
| Unpacked - Depth (mm) | 190 | 245 | 240 | 190 | 240 | |
| Packed - Height (mm) | 98 | |||||
| Packed - Width Front (mm) | 562 | |||||
| Packed - Width Rear (mm) | 562 | |||||
| Packed - Depth (mm) | 296 | |||||
| Weight - Nett (kg) | 3.6 | 2.88 | 2.62 | 3.6 | 2.62 | 2.62 |
| Weight - Gross (kg) | 4.5 | 4.6 |
