| Specification | Value |
|---|---|
| Active or Passive | Active |
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 450 W |
| System Peak Power | 900 W |
| Max SPL @ 1m | 128 dB |
| Freq Response (+/-3 dB) | 58 Hz - 20 kHz |
| Freq Range (-10 dB) | 50 Hz - 20 kHz |
| Bluetooth | Yes |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 12" |
| LF Voice Coil Size | 3" |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 200 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.73" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1.37" |
| HF Power (RE:AES2-2012) | 50 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | No |
| Input Connector | 2 x 1/4” Jack / XLR Combo |
| Waveguide Type | Constant Directivity |
| Enclosure Material | Polypropylene |
| Grille Material and Finish | Steel Black |
| Finish | Black Polypropylene |
| Handles | 2 |
| Deployment | Ground, Flying, Pole, Wall Mount |
| Pole Mount | Dual Angle (0° / -3°) 35 mm |
| Brackets Included | No |
| Rigging | Yes |
| M8 | 5 |
| Nominal Coverage (H x V) | 90° x 60° |
| Sensitivity 2.83 V / 1 m | n/a dB |
| System Rated Impedance | n/a |
| Crossover Frequency | 2.0 kHz |
| Amplifier design | Class D |
| DSP Controls | Normal / Live / DJ / Speech |
| Preset list | Normal / Live / DJ / Speech |
| Active loudspeaker Input Impedance | 10 KΩ Balanced |
| Link Connector | pin XLR |
| Input sensitivity | +4 dBu |
| Max input level | +18 dBu |
| Line output | Pin XLR |
| 240 V AC W (1/8 rated output power) | 137 |
| 120 V AC W (1/8 rated output power) | 137 |
| Idle W | 26 |
| Main Power | 100-120 V~/220-240 V~,50/60 Hz |
| Power Supply | SMPS |
| Unpacked - Height (mm) | 609 |
| Unpacked - Width Front (mm) | 360 |
| Unpacked - Width Rear (mm) | 201 |
| Unpacked - Depth (mm) | 346 |
| Packed - Height (mm) | 690 |
| Packed - Width Front (mm) | 440 |
| Packed - Width Rear (mm) | 440 |
| Packed - Depth (mm) | 430 |
| Weight - Nett (kg) | 16.49 |
| Weight - Gross (kg) | 18.74 |

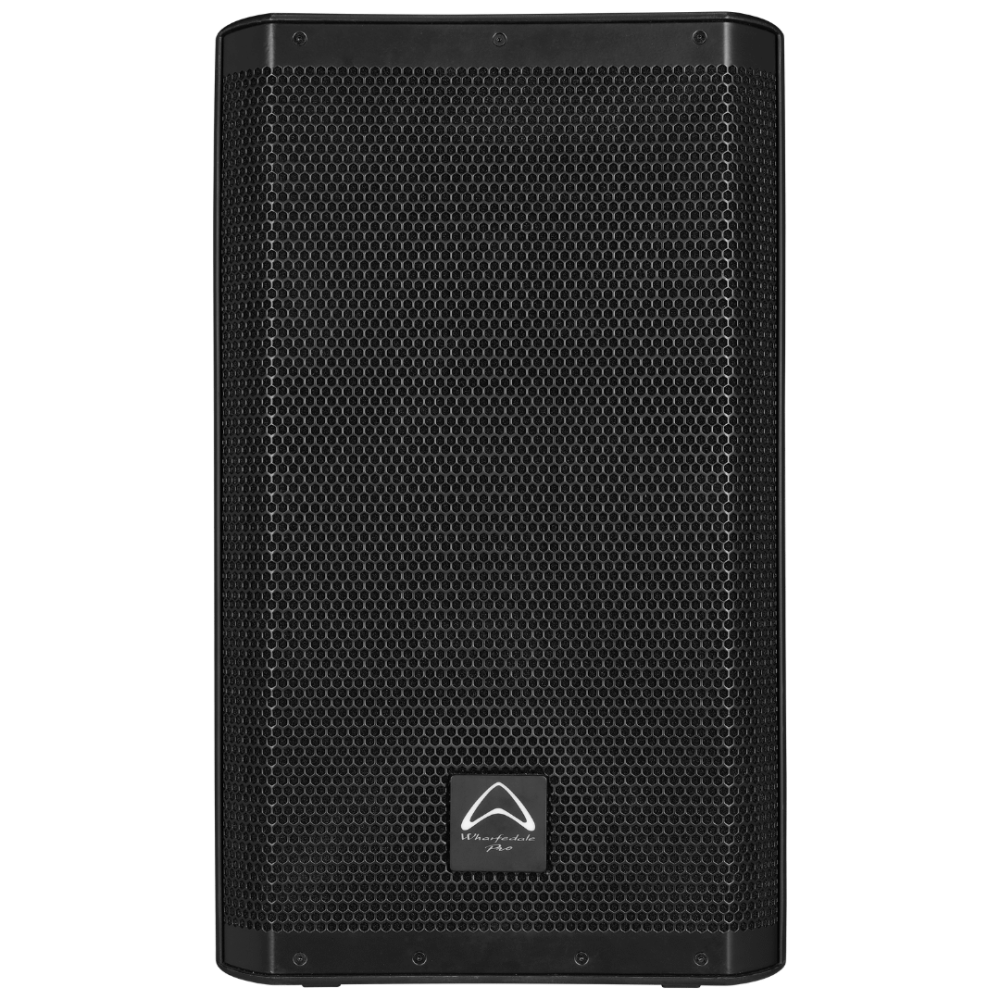

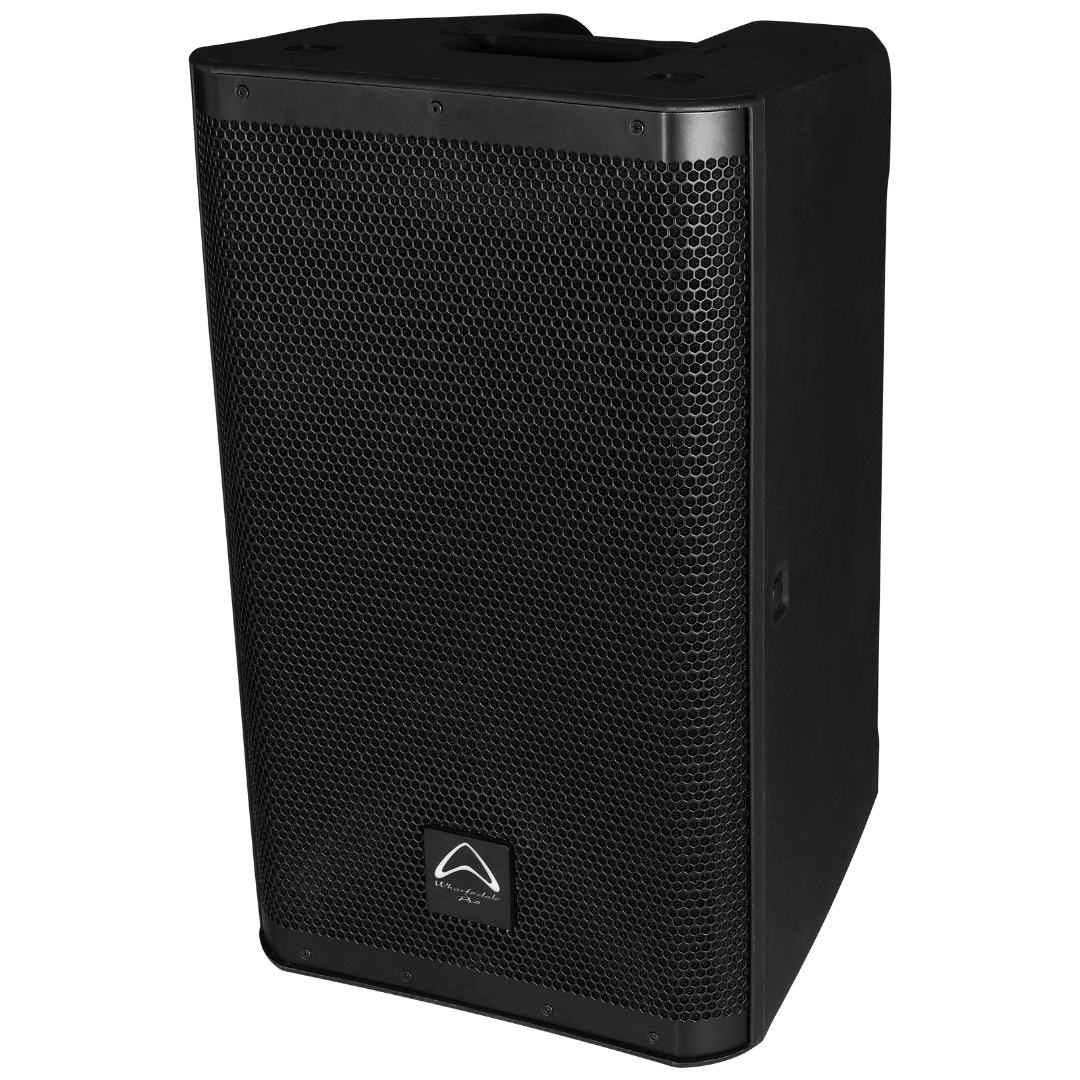

TOURUS+ A12
12" active versatile loudspeaker - with Bluetooth
TOURUS+ A12
12" active versatile loudspeaker - with Bluetooth
TOURUS+ A12 is a 12″ active loudspeaker from our TOURUS+ Active Series — engineered to deliver powerful, full-range sound for live performance, portable PA and installation use.
Powered by a Class D bi-amplified system, it delivers 450 W continuous and 900 W peak output with a maximum SPL of 128 dB at 1 m. Its custom Wharfedale Pro 12″ LF driver with a 3.0″ voice coil delivers deep, controlled bass, while integrated DSP with four FIR presets (NORMAL, LIVE, DJ, SPEECH) optimises performance in any environment. Bluetooth and TWS connectivity enable quick wireless playback and stereo linking.
Built into a durable polypropylene cabinet with dual-angle pole sockets (0° and 3°), multiple rigging points and a 45° monitor angle, TOURUS+ A12 is designed for stage, floor or wall-mounted installation. Rugged, versatile and efficient — a true all-purpose loudspeaker solution. Pair it with a T-SUB-AX active sub for perfectly matched low-frequency extension.
OVERVIEW
| Specification | TOURUS+ A10 | TOURUS+ A12 | TOURUS+ A15 | TOURUS+ A8 |
|---|---|---|---|---|
| Catch Line | 10" active versatile loudspeaker - with Bluetooth | 12" active versatile loudspeaker - with Bluetooth | 15" active versatile loudspeaker - with Bluetooth | 8" active versatile loudspeaker - with Bluetooth |
| Active or Passive | Active | Active | Active | Active |
| System Type | Full-Range | Full-Range | Full-Range | Full-Range |
| Configuration | 2-way | 2-way | 2-way | 2-way |
| System Continuous Power | 320 W | 450 W | 500 W | 280 W |
| System Peak Power | 640 W | 900 W | 1000 W | 560 W |
| Max SPL @ 1m | 125 dB | 128 dB | 130 dB | 124 dB |
| Freq Response (+/-3 dB) | 63 Hz - 20 kHz | 58 Hz - 20 kHz | 50 Hz - 20 kHz | 68 Hz - 20 kHz |
| Freq Range (-10 dB) | 55 Hz - 20 kHz | 50 Hz - 20 kHz | 42 Hz - 20 kHz | 60 Hz - 20 kHz |
| Bluetooth | Yes | Yes | Yes | Yes |
| Driver Brand | Wharfedale Pro | Wharfedale Pro | Wharfedale Pro | Wharfedale Pro |
| LF Driver Size | 10" | 12" | 15" | 8" |
| LF Voice Coil Size | 2.5" | 3" | 3" | 2" |
| LF Rated Impedance | 4 Ω | 4 Ω | 4 Ω | 4 Ω |
| LF Power (RE:AES2-2012) | 280 W | 200 W | 300 W | 180 W |
| HF Driver Type | Compression Driver | Compression Driver | Compression Driver | Compression Driver |
| HF Voice Coil Size | 1.33" | 1.73" | 1.73" | 1.33" |
| HF Diaphragm Material | Titanium | Titanium | Titanium | Titanium |
| HF Exit Size | 1.37" | 1.37" | 1.37" | 1.37" |
| HF Power (RE:AES2-2012) | 40 W | 50 W | 50 W | 30 W |
| HF Rated Impedance | 8 Ω | 8 Ω | 8 Ω | 8 Ω |
| Input Connector | 2 x 1/4” Jack / XLR Combo | 2 x 1/4” Jack / XLR Combo | 2 x 1/4” Jack / XLR Combo | 2 x 1/4” Jack / XLR Combo |
| Waveguide Type | Constant Directivity | Constant Directivity | Constant Directivity | Constant Directivity |
| Enclosure Material | Polypropylene | Polypropylene | Polypropylene | Polypropylene |
| Grille Material and Finish | Steel Black | Steel Black | Steel Black | Steel Black |
| Finish | Black Polypropylene | Black Polypropylene | Black Polypropylene | Black Polypropylene |
| Handles | 2 | 2 | 2 | 1 |
| Deployment | Ground, Flying, Pole, Wall Mount | Ground, Flying, Pole, Wall Mount | Ground, Flying, Pole, Wall Mount | Ground, Flying, Pole, Wall Mount |
| Pole Mount | Dual Angle (0° / -3°) 35 mm | Dual Angle (0° / -3°) 35 mm | Dual Angle (0° / -3°) 35 mm | Dual Angle (0° / -3°) 35 mm |
| Rigging | Yes | Yes | Yes | Yes |
| M8 | 5 | 5 | 5 | 5 |
| Nominal Coverage (H x V) | 90° x 60° | 90° x 60° | 90° x 60° | 90° x 60° |
| Amplifier design | Class D | Class D | Class D | Class D |
| DSP Controls | Normal / Live / DJ / Speech | Normal / Live / DJ / Speech | Normal / Live / DJ / Speech | Normal / Live / DJ / Speech |
| Preset list | Normal / Live / DJ / Speech | Normal / Live / DJ / Speech | Normal / Live / DJ / Speech | Normal / Live / DJ / Speech |
| Active loudspeaker Input Impedance | 10 KΩ Balanced | 10 KΩ Balanced | 10 KΩ Balanced | 10 KΩ Balanced |
| Link Connector | pin XLR | pin XLR | pin XLR | pin XLR |
| Input sensitivity | +4 dBu | +4 dBu | +4 dBu | +4 dBu |
| Max Input Level | +18 dBu | +18 dBu | +18 dBu | +18 dBu |
| Line output | Pin XLR | Pin XLR | Pin XLR | Pin XLR |
| 240 V AC W (1/8 rated output power) | 99 | 137 | 155 | 90 |
| 120 V AC W (1/8 rated output power) | 99 | 137 | 155 | 90 |
| Idle W | 20 | 26 | 26 | 20 |
| Crossover Frequency | 2.0 kHz | 2.0 kHz | 1.8 kHz | 2.0 kHz |
| Main Power | 100-120 V~/220-240 V~,50/60 Hz | 100-120 V~/220-240 V~,50/60 Hz | 100-120 V~/220-240 V~,50/60 Hz | 100-120 V~/220-240 V~,50/60 Hz |
| Power Supply | SMPS | SMPS | SMPS | SMPS |
| Unpacked - Height (mm) | 528 | 609 | 696 | 460 |
| Unpacked - Width Front (mm) | 320 | 360 | 417 | 280 |
| Unpacked - Width Rear (mm) | 179 | 201 | 223 | 164 |
| Unpacked - Depth (mm) | 300 | 346 | 369 | 269 |
| Packed - Height (mm) | 610 | 690 | 790 | 530 |
| Packed - Width Front (mm) | 390 | 440 | 500 | 350 |
| Packed - Width Rear (mm) | 390 | 440 | 500 | 350 |
| Packed - Depth (mm) | 360 | 430 | 450 | 340 |
| Weight - Nett (kg) | 12.13 | 16.49 | 19.11 | 10.3 |
| Weight - Gross (kg) | 13.84 | 18.74 | 21.76 | 12.1 |
