| Specification | Value |
|---|---|
| Active or Passive | Passive |
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 50 W |
| System Programme Power | 100 W |
| System Peak Power | 200 W |
| Max SPL @ 1m | 109 dB |
| Freq Response (+/-3 dB) | 70 Hz - 20 kHz |
| Freq Range (-10 dB) | 50 Hz - 20 kHz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | IP54 |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 6.5" |
| LF Voice Coil Size | 1" |
| LF Rated Impedance | 8 Ω |
| LF Power (RE:AES2-2012) | 50 W |
| HF Driver Type | Soft Dome Tweeter |
| HF Voice Coil Size | 1" |
| HF Diaphragm Material | Silk |
| HF Power (RE:AES2-2012) | 10 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | Yes |
| Input Connector | Phoenix Terminal |
| Enclosure Material | ABS |
| Grille Material and Finish | Aluminium |
| Finish | Black or White |
| Handles | No |
| Deployment | Wall Mount |
| Pole Mount | None |
| Brackets Included | Yes |
| Rigging | No |
| Nominal Coverage (H x V) | 150° x 170° |
| Sensitivity 2.83 V / 1 m | 86 dB |
| System Rated Impedance | 8 Ω |
| Crossover Frequency | 2.2 kHz |
| Recommended HPF = BW 18 dB/OCT. | 50 Hz |
| Transformer (T) | No |
| Included Accessory | Wall Bracket, User Manual |
| Unpacked - Height (mm) | 370 |
| Unpacked - Width Front (mm) | 245 |
| Unpacked - Width Rear (mm) | 245 |
| Unpacked - Depth (mm) | 216 |
| Packed - Height (mm) | 500 |
| Packed - Width Front (mm) | 350 |
| Packed - Width Rear (mm) | 350 |
| Packed - Depth (mm) | 570 |
| Weight - Nett (kg) | 8.6 |
| Weight - Gross (kg) | 11.2 |
i6
IP54 Certified Installation Loudspeakers

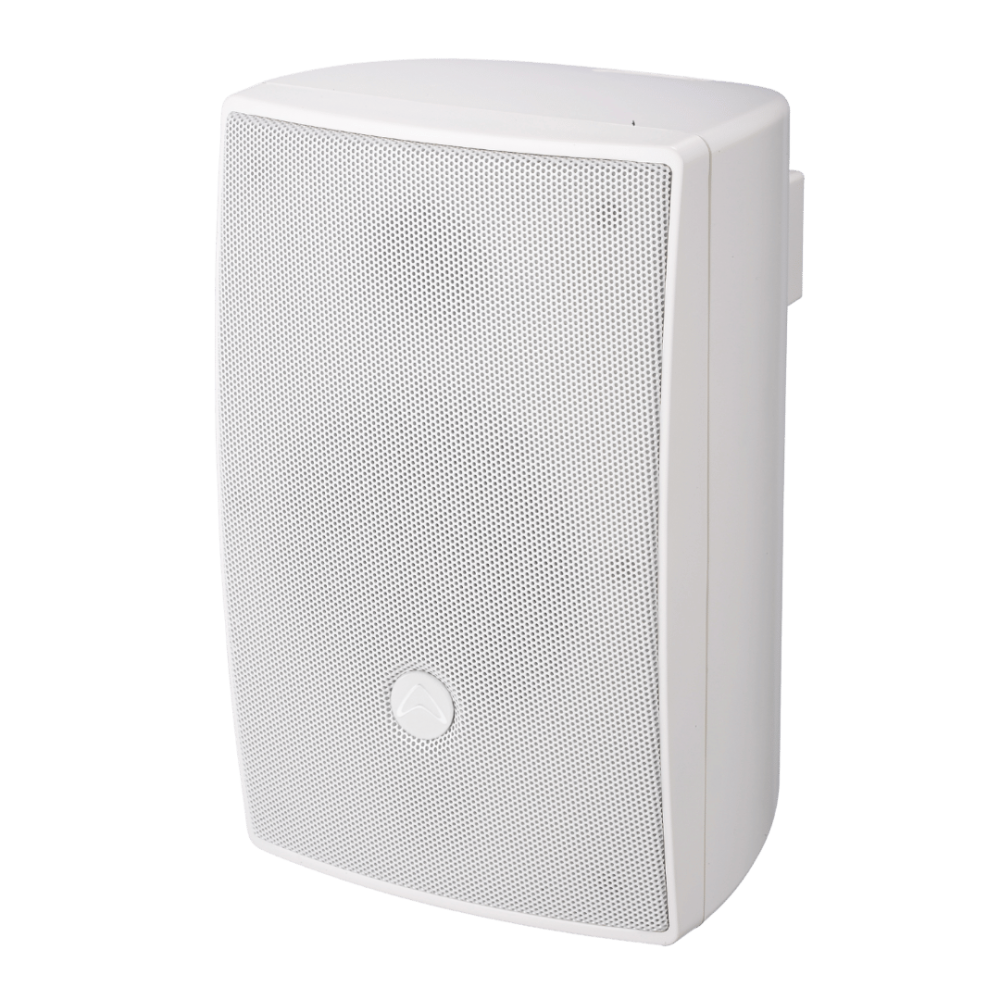

i6
IP54 Certified Installation Loudspeakers
i6 is a 6.5″ installation loudspeaker from our i Series, designed for distributed audio systems that demand clarity, reliability, and simple installation in any environment.

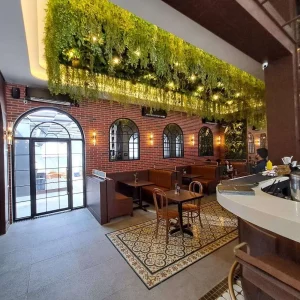

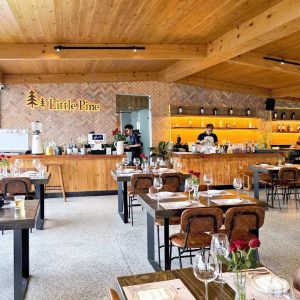

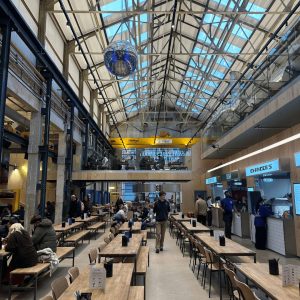

Featuring a 6.5″ LF driver and 1.0″ HF dome tweeter, i6 delivers smooth, full-range sound ideal for restaurants, offices, retail spaces, and hospitality venues. Its IP54 certification ensures protection against dust and water spray, providing dependable performance indoors or in semi-outdoor areas.

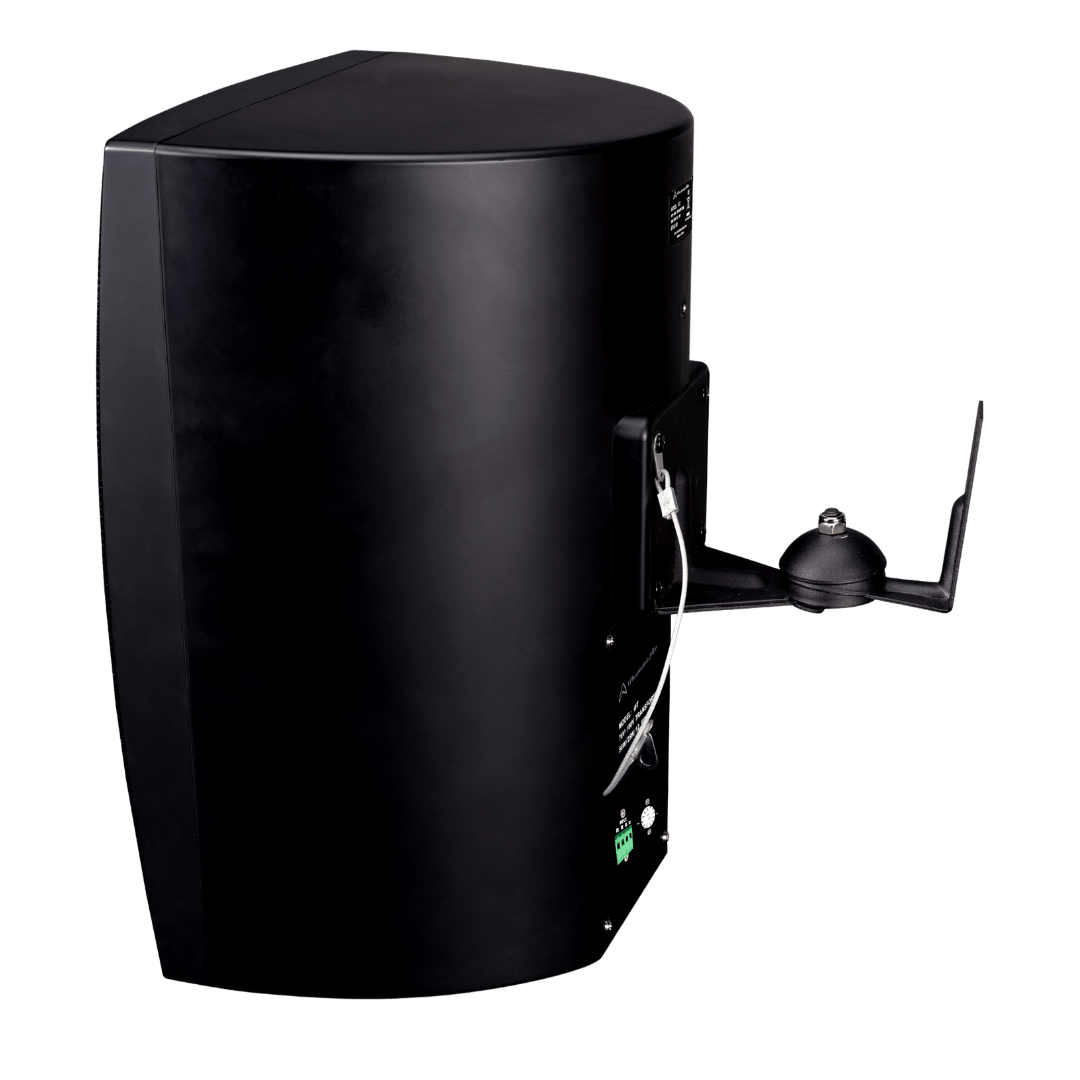

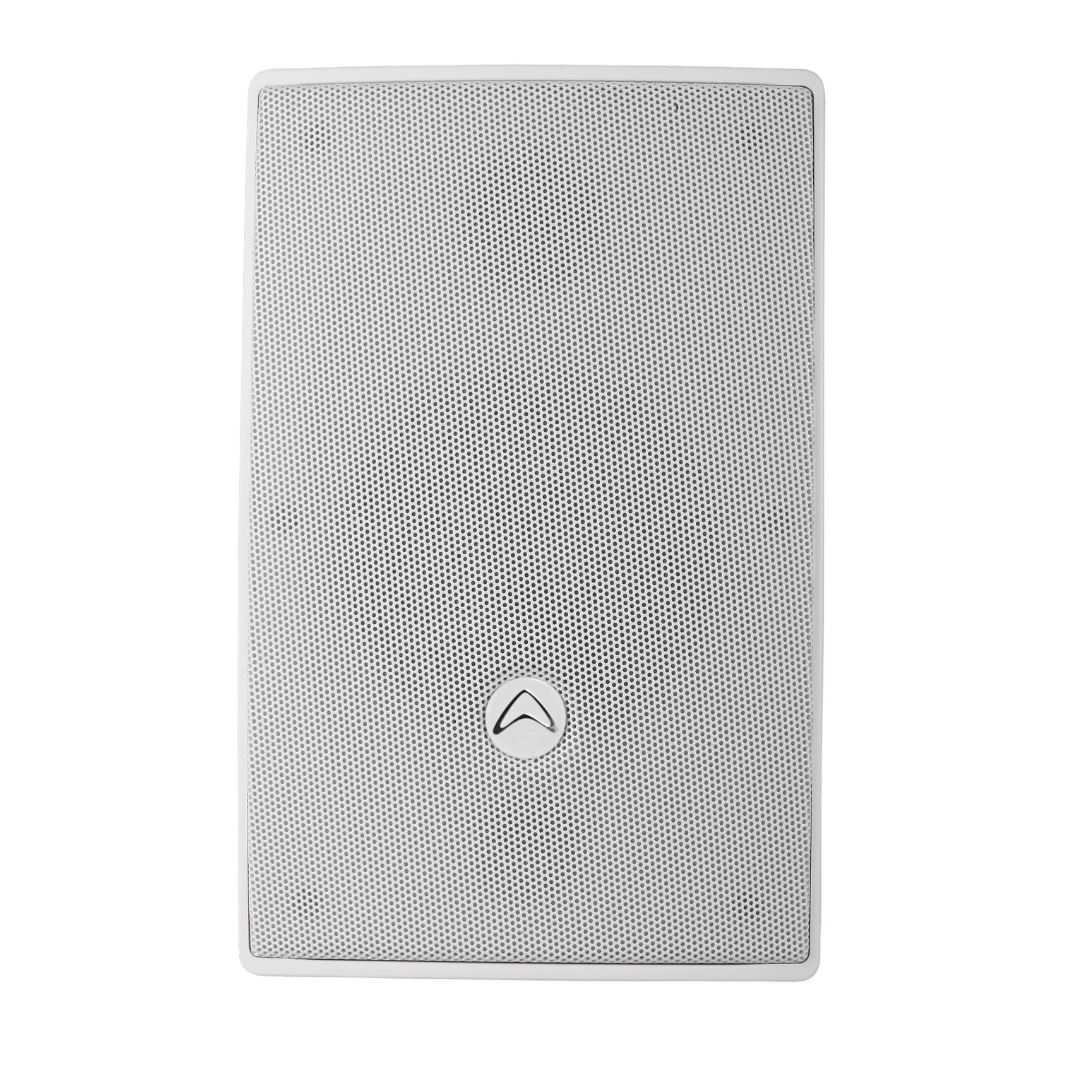

Constructed from durable ABS plastic with a full frontal steel grille, i6 combines longevity with a clean, modern look. Each pair includes fully adjustable wall brackets with a semi-circular “ball and socket” design, allowing flexible angling and quick installation. A seismic restraint tether attachment point offers added security where required.

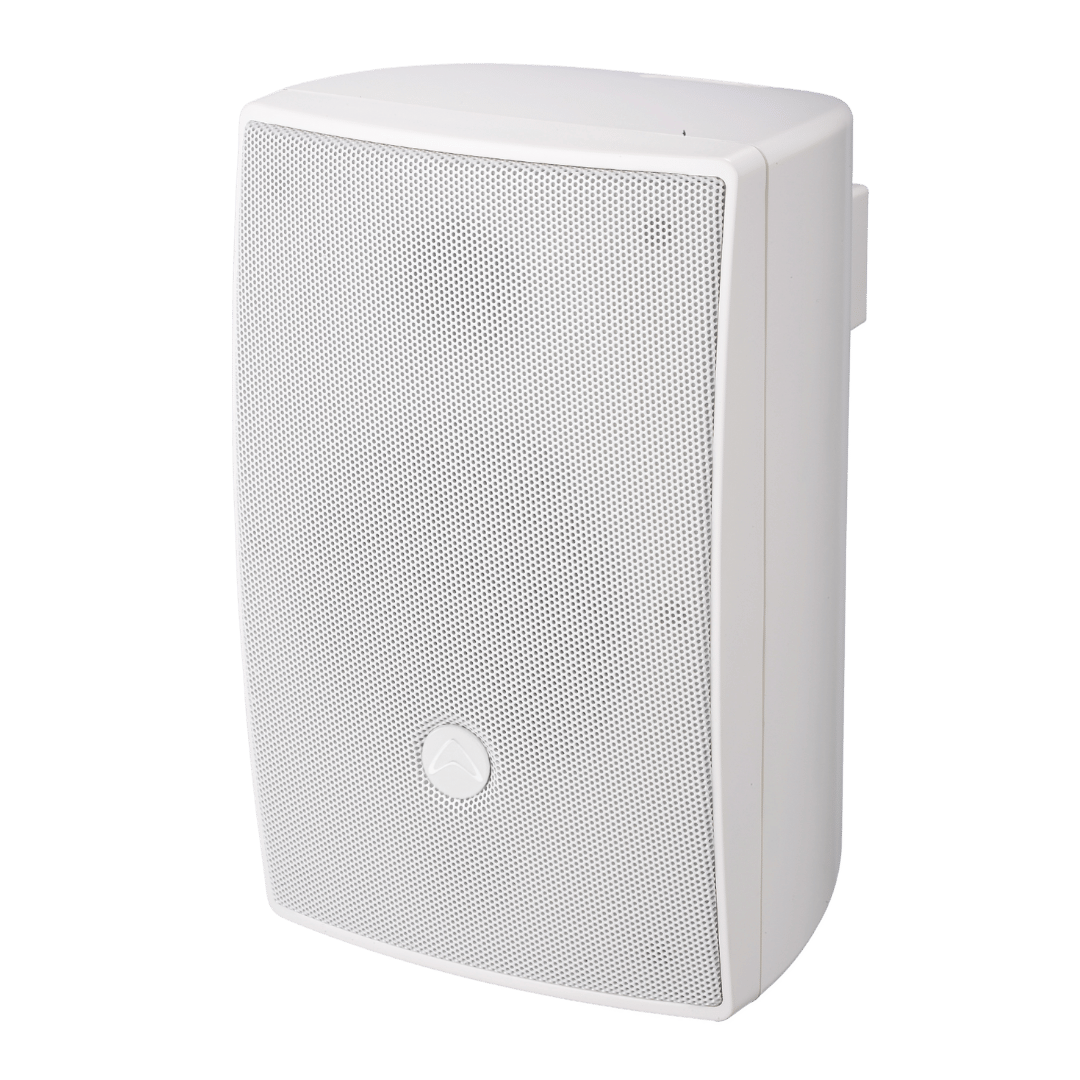

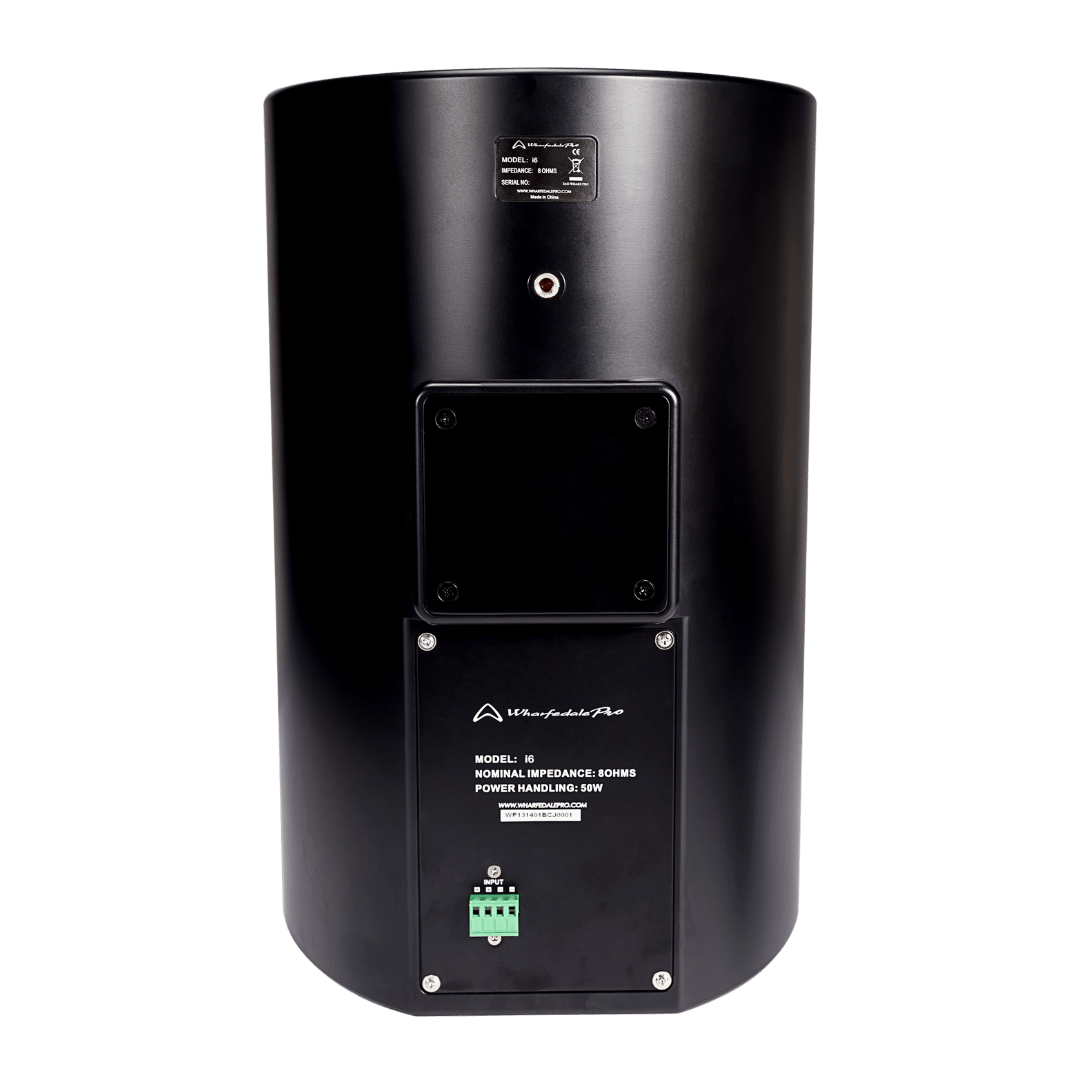

Finished in black or white, i6 integrates seamlessly into any décor. Designed for 8 Ω operation, it features Phoenix connectors for secure, straightforward wiring and quick installation.
OVERVIEW
No accessories found.

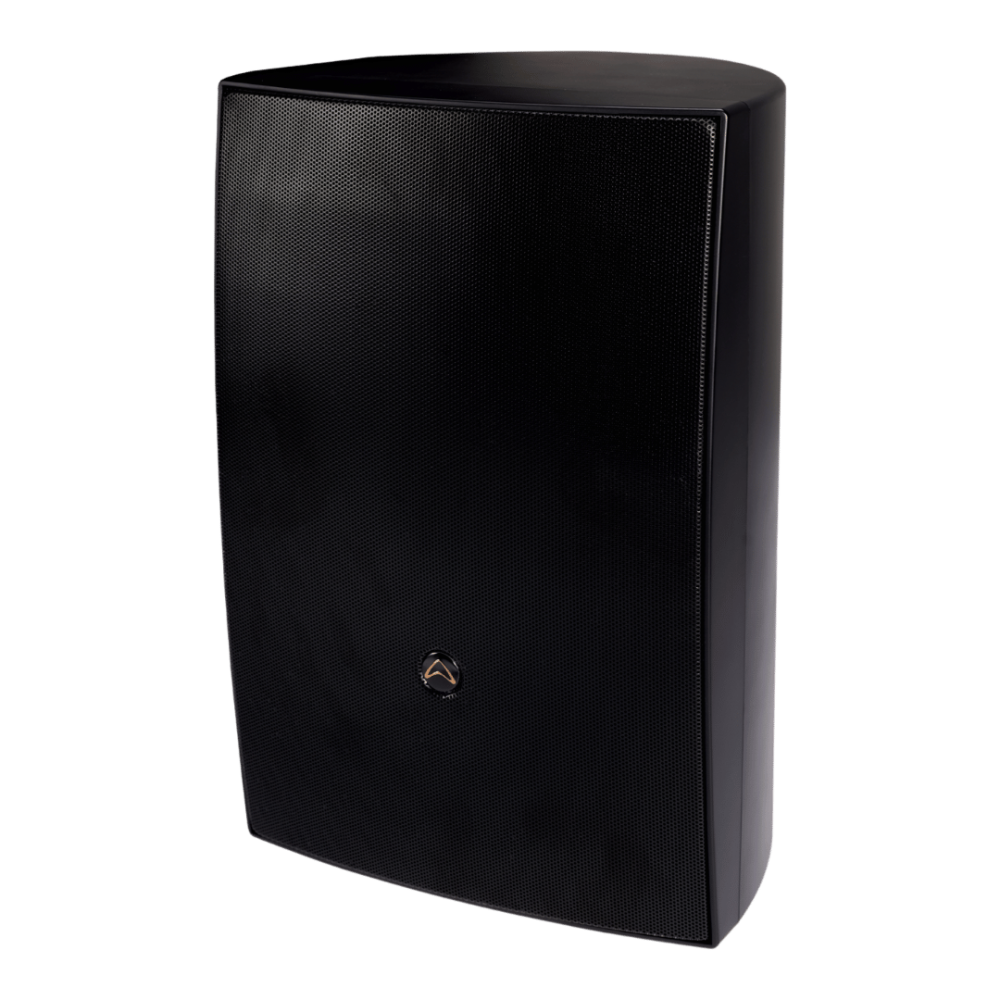

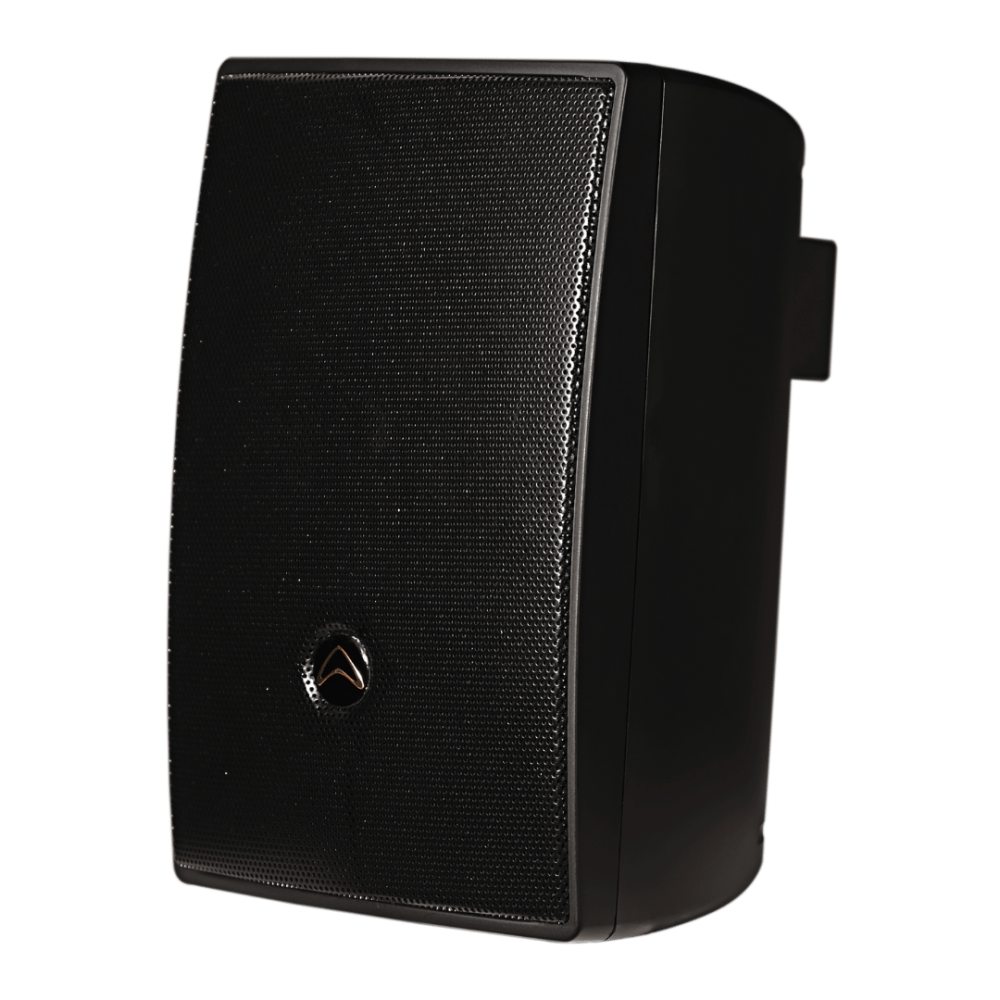

| Specification | i4 | i4T | i6 | i6T | i8 | i8T |
|---|---|---|---|---|---|---|
| Catch Line | IP54 Certified Installation Loudspeakers | IP54 Certified Installation Loudspeaker - with transformer | IP54 Certified Installation Loudspeakers | IP54 Certified Installation Loudspeaker - with transformer | IP54 Certified Installation Loudspeakers | IP54 Certified Installation Loudspeaker - with transformer |
| Active or Passive | Passive | Passive | Passive | Passive | Passive | Passive |
| System Type | Full-Range | Full-Range | Full-Range | Full-Range | Full-Range | Full-Range |
| Configuration | 2-way | 2-way | 2-way | 2-way | 2-way | 2-way |
| System Continuous Power | 25 W | 25 W | 50 W | 50 W | 50 W | 50 W |
| System Programme Power | 50 W | 100 W | 100 W | |||
| System Peak Power | 100 W | 200 W | 200 W | |||
| Max SPL @ 1m | 105 dB | 95 dB | 109 dB | 102 dB | 110 dB | 103 dB |
| Freq Response (+/-3 dB) | 100 Hz - 20 kHz | 100 Hz - 20 kHz | 70 Hz - 20 kHz | 70 Hz - 20 kHz | 70 Hz - 20 kHz | 70 Hz - 20 kHz |
| Freq Range (-10 dB) | 60 Hz - 20 kHz | 60 Hz - 20 kHz | 50 Hz - 20 kHz | 50 Hz - 20 kHz | 50 Hz - 20 kHz | 50 Hz - 20 kHz |
| IP Certification | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 |
| Driver Brand | Wharfedale Pro | Wharfedale Pro | Wharfedale Pro | Wharfedale Pro | Wharfedale Pro | Wharfedale Pro |
| LF Driver Size | 4" | 4" | 6.5" | 6.5" | 8" | 8" |
| LF Voice Coil Size | 1" | 1" | 1" | 1" | 1" | 1" |
| LF Rated Impedance | 8 Ω | 8 Ω | 8 Ω | 8 Ω | 8 Ω | 8 Ω |
| LF Power (RE:AES2-2012) | 25 W | 25 W | 50 W | 50 W | 50 W | 50 W |
| HF Driver Type | Soft Dome Tweeter | Soft Dome Tweeter | Soft Dome Tweeter | Soft Dome Tweeter | Soft Dome Tweeter | Soft Dome Tweeter |
| HF Voice Coil Size | 1" | 1" | 1" | 1" | 1" | 1" |
| HF Diaphragm Material | Silk | Silk | Silk | Silk | Silk | Silk |
| HF Power (RE:AES2-2012) | 10 W | 10 W | 10 W | 10 W | 10 W | 10 W |
| HF Rated Impedance | 8 Ω | 8 Ω | 8 Ω | 8 Ω | 8 Ω | 8 Ω |
| Preset Library | Yes | Yes | Yes | Yes | Yes | Yes |
| Input Connector | Phoenix Terminal | Phoenix Terminal | Phoenix Terminal | Phoenix Terminal | Phoenix Terminal | Phoenix Terminal |
| Enclosure Material | ABS | ABS | ABS | ABS | ABS | ABS |
| Grille Material and Finish | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Finish | Black or White | Black or White | Black or White | Black or White | Black or White | Black or White |
| Deployment | Wall Mount | Wall Mount | Wall Mount | Wall Mount | Wall Mount | Wall Mount |
| Brackets Included | Yes | Yes | Yes | Yes | Yes | Yes |
| Nominal Coverage (H x V) | 110° x 130° | 110° x 130° | 150° x 170° | 150° x 170° | 130° x 180° | 130° x 180° |
| Sensitivity 2.83 V / 1 m | 84 dB | 83 dB | 86 dB | 85 dB | 87 dB | 86 dB |
| System Rated Impedance | 8 Ω | 8 Ω | 8 Ω | 8 Ω | 8 Ω | 8 Ω |
| Crossover Frequency | 2.8 kHz | 2.8 kHz | 2.2 kHz | 2.2 kHz | 2.0 kHz | 2.0 kHz |
| Recommended HPF = BW 18 dB/OCT. | 60 Hz | 60 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
| Transformer (T) | Yes | Yes | Yes | |||
| Transformer Taps (70 V) | 6.25 / 12.5 / 25 W | 12.5 / 25 / 50 W | 12.5 / 25 / 50 W | |||
| Transformer Taps (100 V) | 12.5 / 25 W | 25 / 50 W | 25 / 50 W | |||
| Input Connectors (T) | Screw Terminal | Screw Terminal | Screw Terminal | |||
| Included Accessory | Wall Bracket, User Manual | Wall Bracket, User Manual | Wall Bracket, User Manual | Wall Bracket, User Manual | Wall Bracket, User Manual | Wall Bracket, User Manual |
| Unpacked - Height (mm) | 232 | 232 | 370 | 370 | 405 | 405 |
| Unpacked - Width Front (mm) | 160 | 160 | 245 | 245 | 270 | 270 |
| Unpacked - Width Rear (mm) | 160 | 160 | 245 | 245 | 270 | 270 |
| Unpacked - Depth (mm) | 148 | 148 | 216 | 216 | 234 | 234 |
| Packed - Height (mm) | 340 | 340 | 500 | 500 | 560 | 560 |
| Packed - Width Front (mm) | 216 | 216 | 350 | 350 | 360 | 360 |
| Packed - Width Rear (mm) | 216 | 216 | 350 | 350 | 360 | 360 |
| Packed - Depth (mm) | 430 | 430 | 570 | 570 | 600 | 600 |
| Weight - Nett (kg) | 4 | 5 | 8.6 | 10.6 | 9.36 | 12.04 |
| Weight - Gross (kg) | 5.4 | 6.5 | 11.2 | 13.76 | 12.9 | 15.4 |
