| Specification | Value |
|---|---|
| Amp Channels | 2 |
| Topology | Class D |
| 8Ω | 2 x 1450 W |
| 4Ω | 2 x 2500 W |
| 8Ω Bridged | 1 x 3500 W |
| Input Connectors | 2 x XLR Socket |
| Output Connectors | 2 x 4 Pole Speaker Connector |
| Link Connectors | 2 x XLR Pin |
| Mode Switch | Parallel / Stereo / Bridge Mode |
| DSP Features | None |
| Input Gain/Sensitivity Switch | 0.775 V / 1 V / 35 dB |
| Slew Rate | >50 V / us |
| Output RMS Voltage (V) | 95.9 V |
| THD+N | < 0.05%, 20 Hz - 20 kHz |
| Crosstalk | -75 dB (1 kHz), -60 dB (10 kHz) |
| Amplifier Frequency Response | 20 Hz - 20 kHz, +0/-0.75 dB |
| Amplifier Input Impedance | 20 kΩ, 10 kΩ |
| Damping Factor | > 300 |
| SNR | > 108 |
| Protection | Protection circuit against short circuit, no load, on/off noise, radio interference |
| Main Power | 100-120 V AC or 200-240 V AC ~ 50/60 Hz |
| Included Accessory | User Manual |
| Unpacked - Height (mm) | 89 |
| Unpacked - Width Front (mm) | 482 |
| Unpacked - Width Rear (mm) | 482 |
| Unpacked - Depth (mm) | 410 |
| Packed - Height (mm) | 185 |
| Packed - Width Front (mm) | 535 |
| Packed - Width Rear (mm) | 535 |
| Packed - Depth (mm) | 575 |
| Weight - Nett (kg) | 17.6 |
| Weight - Gross (kg) | 19.9 |

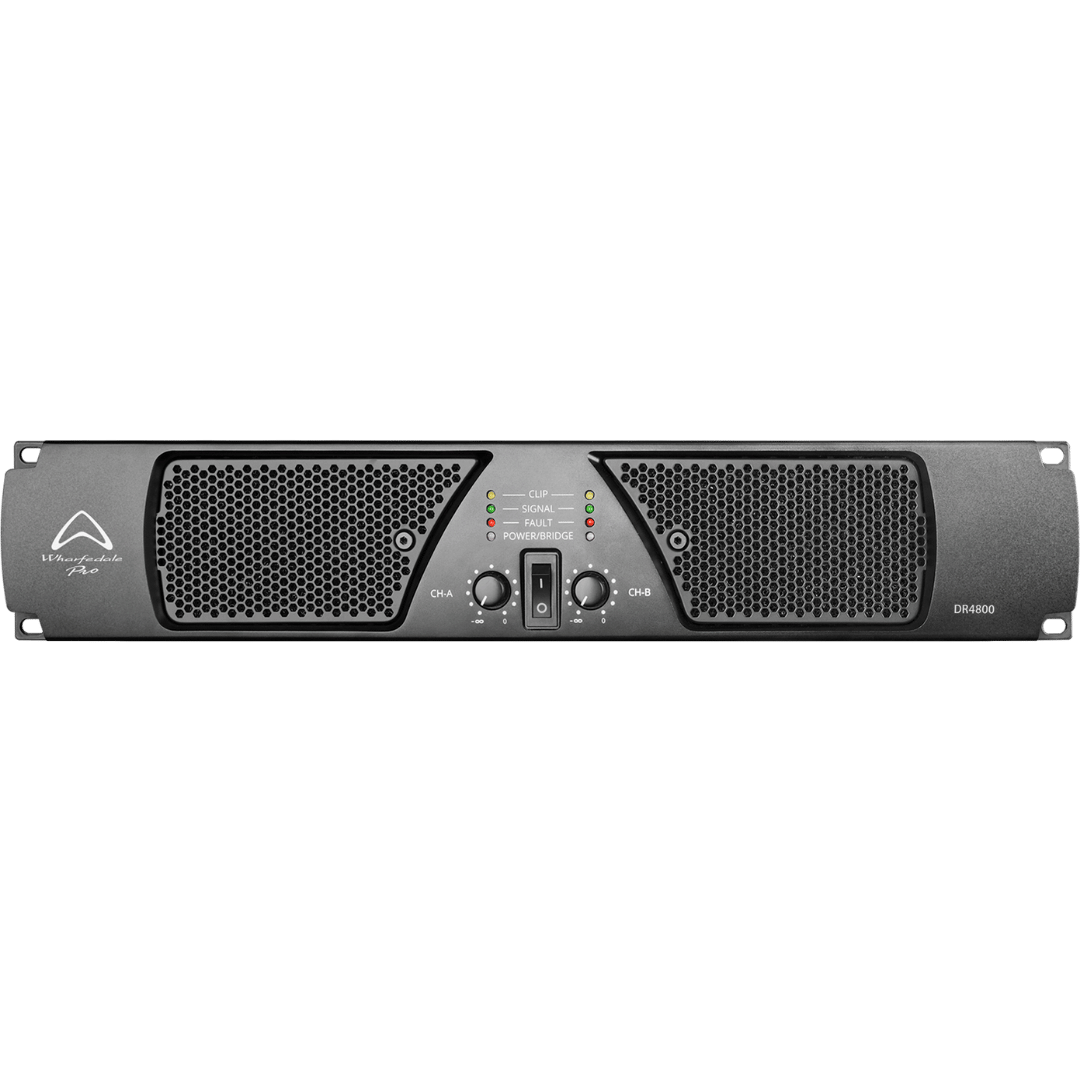

DR4800
Pushing power, price and performance
DR4800
Pushing power, price and performance
DR4800 is a high-power 2-channel Class D amplifier from our DR Series, built for demanding live sound and installation environments where maximum output, reliability, and value are essential.
Delivering 1450 W per channel at 8 Ω and 2500 W per channel at 4 Ω, DR4800 provides powerful headroom for full-range systems or subwoofer applications. When bridged at 8 Ω, it delivers a commanding 3500 W, making it a versatile solution for large-scale PA configurations.
A heavy-duty toroidal transformer ensures rapid burst power for improved dynamics and punch, while selectable input sensitivity (0.775 V, 1 V, or 35 dB) allows seamless integration with a wide range of system setups. With a frequency response of 20 Hz – 20 kHz and THD below 0.05%, audio remains clean and consistent even at high output levels.
Equipped with XLR inputs and link outputs plus speakON™ connectors, DR4800 ensures secure connections in professional environments. A robust cooling system and built-in protection circuits guard against overheating, short circuits, and DC faults, ensuring long-term durability in touring and fixed installations.
DR4800 combines power, efficiency and resilience — a workhorse amplifier engineered for serious performance.
OVERVIEW
No accessories found.
| Specification | DR4800 | DR6000 |
|---|---|---|
| Catch Line | Pushing power, price and performance | Pushing power, price and performance |
| Amp Channels | 2 | 2 |
| Topology | Class D | Class D |
| 8Ω | 2 x 1450 W | 2 x 1850 W |
| 4Ω | 2 x 2500 W | 2 x 3150 W |
| 8Ω Bridged | 1 x 3500 W | 1 x 4700 W |
| Input Connectors | 2 x XLR Socket | 2 x XLR Socket |
| Output Connectors | 2 x 4 Pole Speaker Connector | 2 x 4 Pole Speaker Connector |
| Link Connectors | 2 x XLR Pin | 2 x XLR Pin |
| Mode Switch | Parallel / Stereo / Bridge Mode | Parallel / Stereo / Bridge Mode |
| Input Gain/Sensitivity Switch | 0.775 V / 1 V / 35 dB | 0.775 V / 1 V / 35 dB |
| Slew Rate | >50V / us | >50V / us |
| Output RMS Voltage (V) | 95.9 V | 109.6 V |
| THD+N | < 0.05%, 20 Hz - 20 kHz | < 0.05%, 20 Hz - 20 kHz |
| Crosstalk | -75 dB (1 kHz), -60 dB (10 kHz) dB | -75 dB (1 kHz), -60 dB (10 kHz) dB |
| Frequency Response | 20 Hz - 20 kHz, +0/-0.75 dB | 20 Hz - 20 kHz, +0/-0.75 dB |
| Input Impedance | 20 kΩ, 10 kΩ | 20 kΩ, 10 kΩ |
| Damping Factor | > 300 | > 300 |
| SNR | > 108 dB | > 108 dB |
| Protection | Protection circuit against short circuit, no load, on/off noise, radio interference | Protection circuit against short circuit, no load, on/off noise, radio interference |
| Main Power | 100-120 V AC or 200-240 V AC ~ 50/60 Hz | 100-120 V AC or 200-240 V AC ~ 50/60 Hz |
| Included Accessory | User Manual | User Manual |
| Unpacked - Height (mm) | 89 | 89 |
| Unpacked - Width Front (mm) | 482 | 482 |
| Unpacked - Width Rear (mm) | 482 | 482 |
| Unpacked - Depth (mm) | 410 | 410 |
| Packed - Height (mm) | 185 | 185 |
| Packed - Width Front (mm) | 535 | 535 |
| Packed - Width Rear (mm) | 535 | 535 |
| Packed - Depth (mm) | 575 | 575 |
| Weight - Nett (kg) | 17.6 | 19.5 |
| Weight - Gross (kg) | 19.9 | 21.8 |
