Line Array Elements | Precision Sound Modules

WLA-112

12" coaxial hybrid curvature array element

Array Element, Coaxial 2-way

133 dB Max SPL @ 1m

12" LF Driver

8 Ω Impedance

450 W Continuous

900 W Programme

WLA-112

12" coaxial hybrid curvature array element

Array Element, Coaxial 2-way

133 dB Max SPL @ 1m

12" LF Driver

8 Ω Impedance

450 W Continuous

900 W Programme

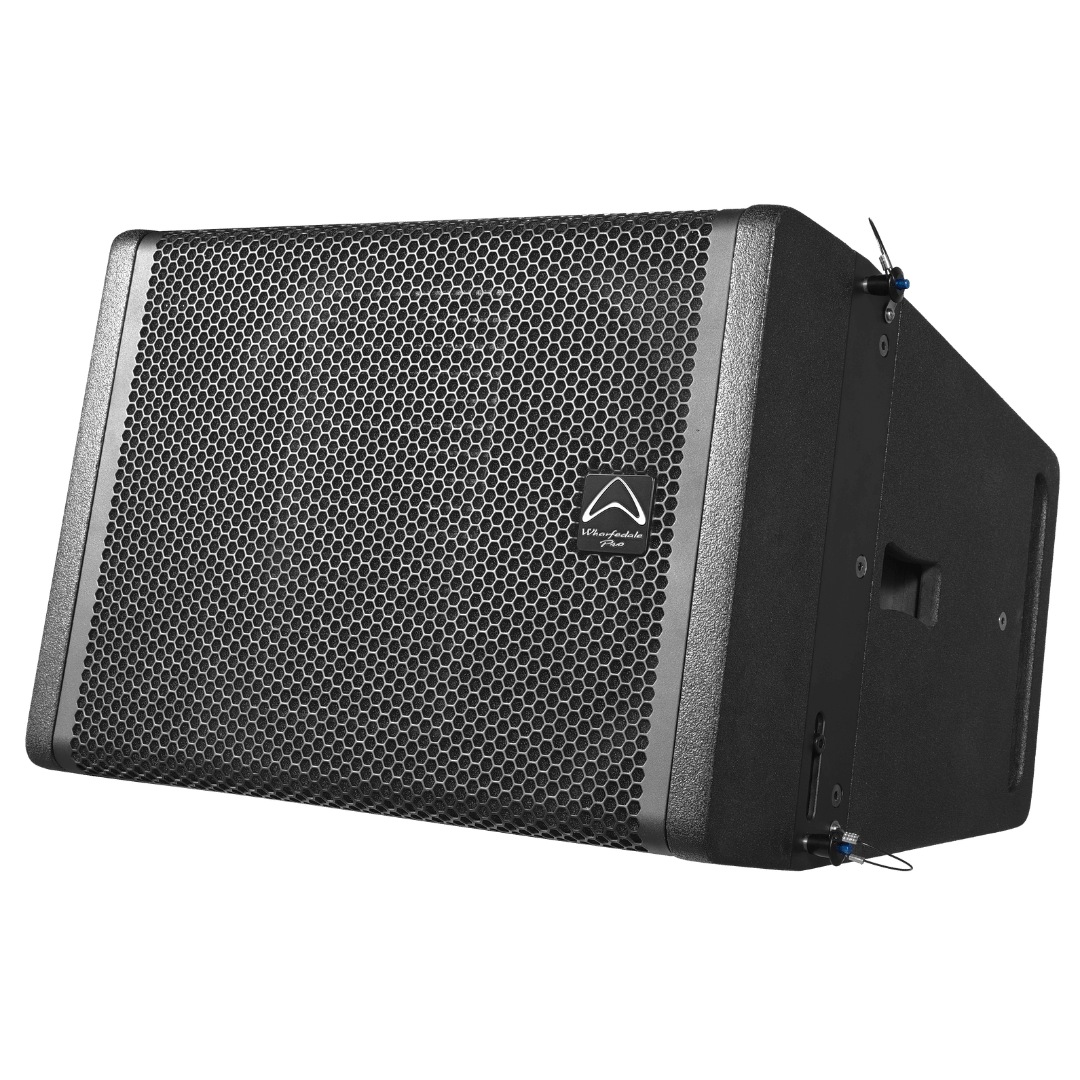

WLA-115

15" coaxial hybrid curvature array element

Array Element, Coaxial 2-way

135 dB Max SPL @ 1m

15" LF Driver

8 Ω Impedance

500 W Continuous

1000 W Programme

WLA-115

15" coaxial hybrid curvature array element

Array Element, Coaxial 2-way

135 dB Max SPL @ 1m

15" LF Driver

8 Ω Impedance

500 W Continuous

1000 W Programme

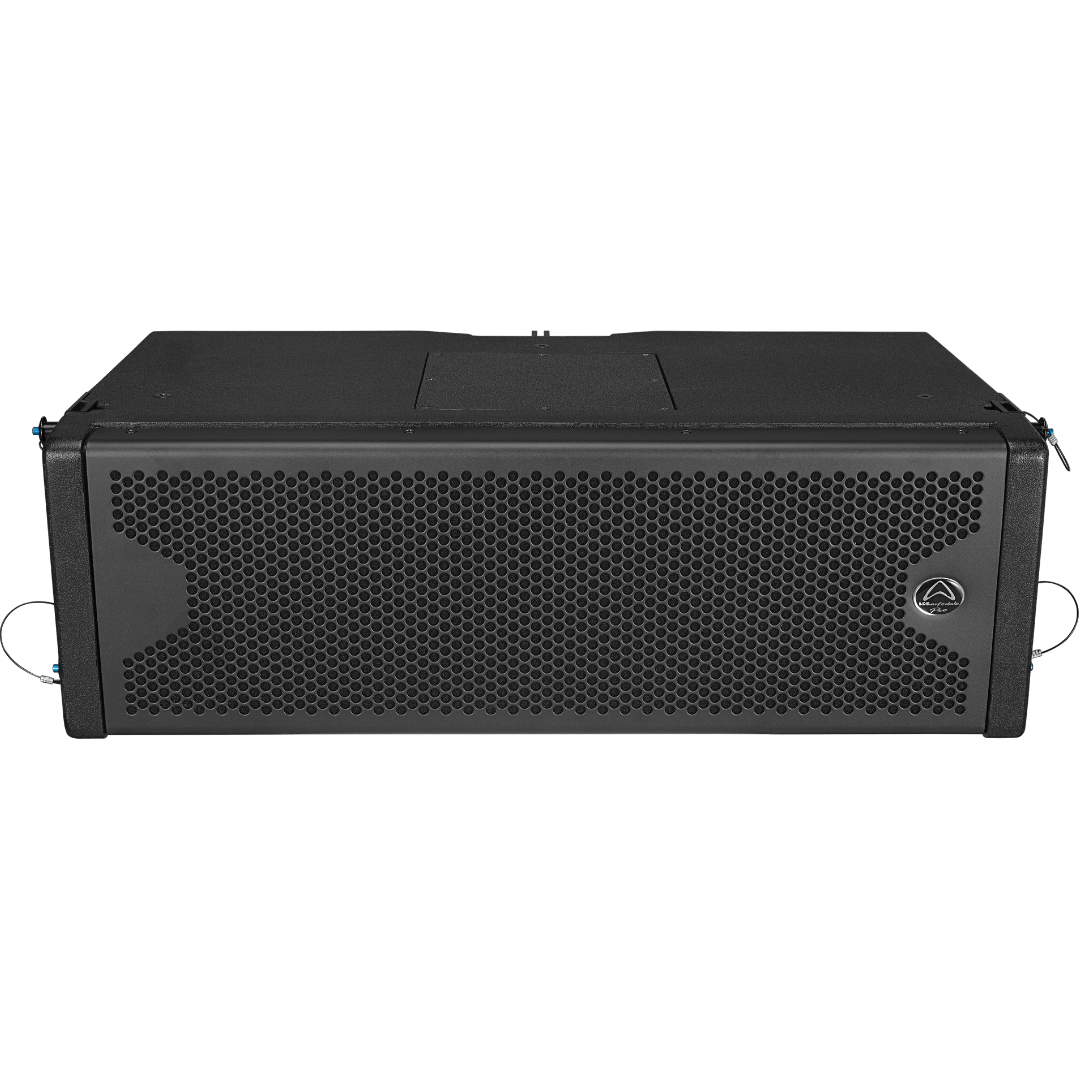

WLA-28X

Dual 8" line array element

Array Element, 2-way

132 dB Max SPL @ 1m

2 x 8" LF Driver

Passive: 16 Ω / Bi-amp LF: 16 Ω / Bi-amp HF: 16 Ω Impedance

Passive: 400 W / Bi-amp LF: 400 W / Bi-amp HF: 90 W Continuous

Passive: 800 W / Bi-amp LF: 800 W / Bi-amp HF: 180 W Programme

WLA-28X

Dual 8" line array element

Array Element, 2-way

132 dB Max SPL @ 1m

2 x 8" LF Driver

Passive: 16 Ω / Bi-amp LF: 16 Ω / Bi-amp HF: 16 Ω Impedance

Passive: 400 W / Bi-amp LF: 400 W / Bi-amp HF: 90 W Continuous

Passive: 800 W / Bi-amp LF: 800 W / Bi-amp HF: 180 W Programme

WLA-28XF

Dual 8" IPX6 waterproof line array

Array Element, 2-way

133 dB Max SPL @ 1m

2 x 8" LF Driver

16 Ω Impedance

400 W Continuous

800 W Programme

WLA-28XF

Dual 8" IPX6 waterproof line array

Array Element, 2-way

133 dB Max SPL @ 1m

2 x 8" LF Driver

16 Ω Impedance

400 W Continuous

800 W Programme

WLA-112A

12" active coaxial hybrid curvature array element

Array Element, Coaxial 2-way

133 dB Max SPL @ 1m

12" LF Driver

680 W Continuous

1360 W Peak

Brackets Included

WLA-112A

12" active coaxial hybrid curvature array element

Array Element, Coaxial 2-way

133 dB Max SPL @ 1m

12" LF Driver

680 W Continuous

1360 W Peak

Brackets Included

WLA-115A

15" active coaxial hybrid curvature array element

Array Element, Coaxial 2-way

135 dB Max SPL @ 1m

15" LF Driver

830 W Continuous

1660 W Peak

Brackets Included

WLA-115A

15" active coaxial hybrid curvature array element

Array Element, Coaxial 2-way

135 dB Max SPL @ 1m

15" LF Driver

830 W Continuous

1660 W Peak

Brackets Included

WLA-210A

Dual 10" active line array element with EVO-Fold

Array Element, 2-way

133 dB Max SPL @ 1m

2 x 10" LF Driver

LF: 700 W / HF: 100 W Continuous

LF: 1400 W / HF: 200 W Peak

Brackets Included

WLA-210A

Dual 10" active line array element with EVO-Fold

Array Element, 2-way

133 dB Max SPL @ 1m

2 x 10" LF Driver

LF: 700 W / HF: 100 W Continuous

LF: 1400 W / HF: 200 W Peak

Brackets Included

WLA-210X

Dual 10" practicality

Array Element, 2-way

138 dB Max SPL @ 1m

2 x 10" LF Driver

16 Ω Impedance

Passive: 800 W / Bi-amp LF: 800 W / Bi-amp HF: 90 W Continuous

Passive: 1600 W / Bi-amp LF: 1600 W / Bi-amp HF: 180 W Programme

WLA-210X

Dual 10" practicality

Array Element, 2-way

138 dB Max SPL @ 1m

2 x 10" LF Driver

16 Ω Impedance

Passive: 800 W / Bi-amp LF: 800 W / Bi-amp HF: 90 W Continuous

Passive: 1600 W / Bi-amp LF: 1600 W / Bi-amp HF: 180 W Programme

WLA-210XF

Dual 10" IPX6 waterproof array

Array Element, 2-way

138 dB Max SPL @ 1m

2 x 10" LF Driver

16 Ω Impedance

LF: 800 W / HF: 90 W Continuous

LF: 1600 W / HF: 180 W Programme

WLA-210XF

Dual 10" IPX6 waterproof array

Array Element, 2-way

138 dB Max SPL @ 1m

2 x 10" LF Driver

16 Ω Impedance

LF: 800 W / HF: 90 W Continuous

LF: 1600 W / HF: 180 W Programme

WLA-210XP

Dual 10" line array element with EVO-Fold

Array Element, 2-way

138 dB Max SPL @ 1m

2 x 10" LF Driver

8 Ω Impedance

Passive: 800 W / Bi-amp LF: 800 W / Bi-amp HF: 90 W Continuous

Passive: 1600 W / Bi-amp LF: 1600 W / Bi-amp HF: 180 W Programme

WLA-210XP

Dual 10" line array element with EVO-Fold

Array Element, 2-way

138 dB Max SPL @ 1m

2 x 10" LF Driver

8 Ω Impedance

Passive: 800 W / Bi-amp LF: 800 W / Bi-amp HF: 90 W Continuous

Passive: 1600 W / Bi-amp LF: 1600 W / Bi-amp HF: 180 W Programme

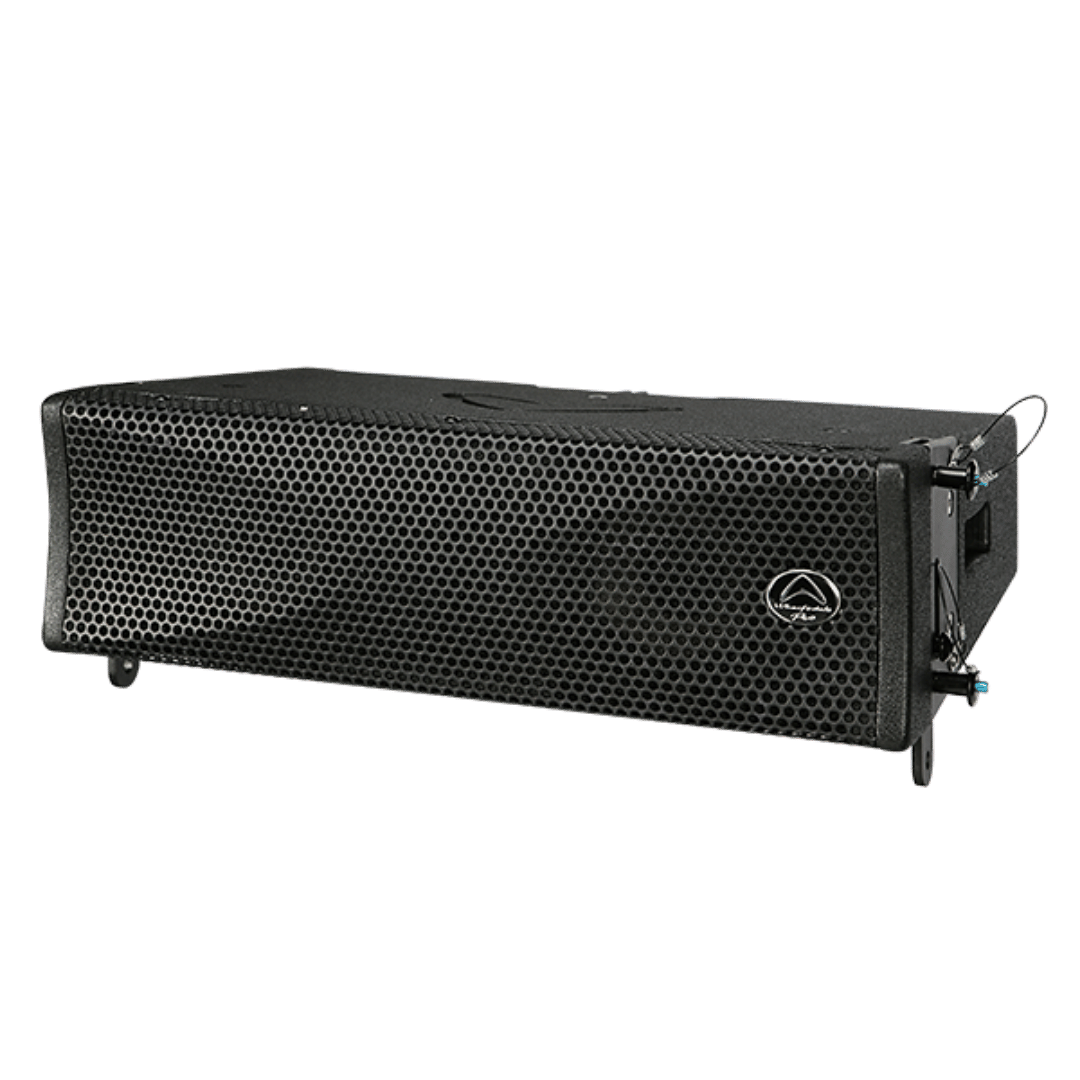

WLA-25

Dual 5" array element

Array Element, 2-way

132 dB Max SPL @ 1m

2 x 5" LF Driver

16 Ω Impedance

120 W Continuous

240 W Programme

WLA-25

Dual 5" array element

Array Element, 2-way

132 dB Max SPL @ 1m

2 x 5" LF Driver

16 Ω Impedance

120 W Continuous

240 W Programme

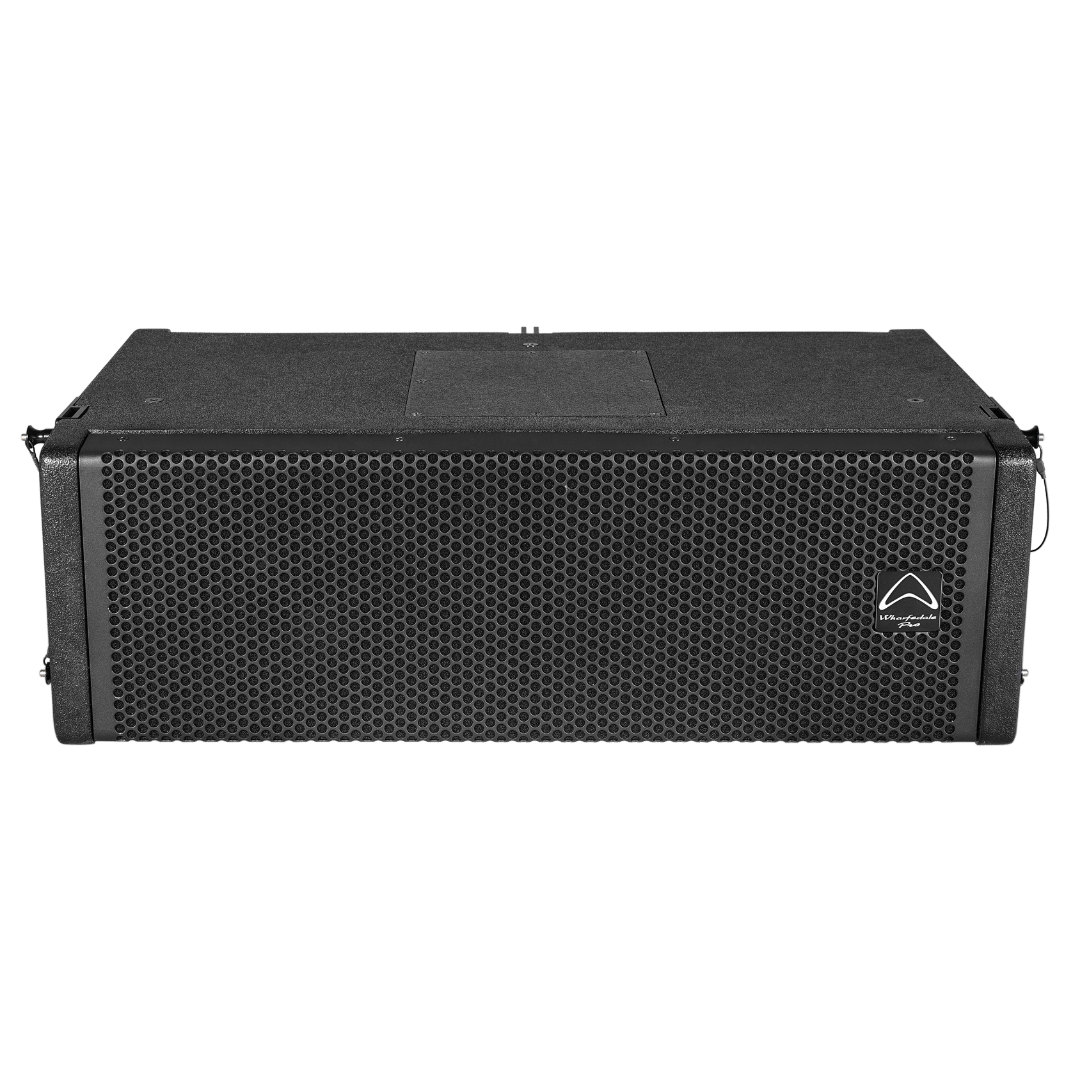

WLA-28A

Dual 8" active line array element with internal DSP

Array Element, 2-way

132 dB Max SPL @ 1m

2 x 8" LF Driver

LF: 650 W / HF: 100 W Continuous

LF: 1300 W / HF: 200 W Peak

Birch Plywood

WLA-28A

Dual 8" active line array element with internal DSP

Array Element, 2-way

132 dB Max SPL @ 1m

2 x 8" LF Driver

LF: 650 W / HF: 100 W Continuous

LF: 1300 W / HF: 200 W Peak

Birch Plywood

WLA-312X

3-way element. Packed with performance.

Array Element, 3-way

142 dB Max SPL @ 1m

2 x 12" LF Driver

Impedance

LF: 900 W / MF: 350 W / HF: 160 W Continuous

LF: 1800 W / MF: 700 W / HF: 320 W Programme

WLA-312X

3-way element. Packed with performance.

Array Element, 3-way

142 dB Max SPL @ 1m

2 x 12" LF Driver

Impedance

LF: 900 W / MF: 350 W / HF: 160 W Continuous

LF: 1800 W / MF: 700 W / HF: 320 W Programme
