Introduction
To get the most from any line array, it needs setting up correctly. Without tuning and refining, the system will not deliver to its full potential. The system not only needs to be tuned to the room or venue, but the individual elements of the array need to be tuned to work perfectly in relation to each other. By following the 4 ‘Tuning Tips’ below you can improve the overall performance of your line array.

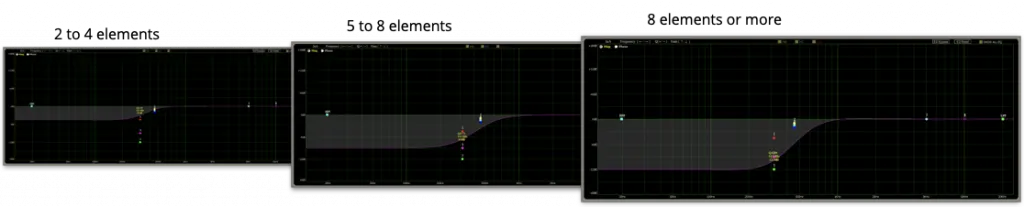

1. Array Scaling
As elements are combined, the lower frequencies are proportionally increased. Therefore, when more elements are used, more LF reduction is needed.

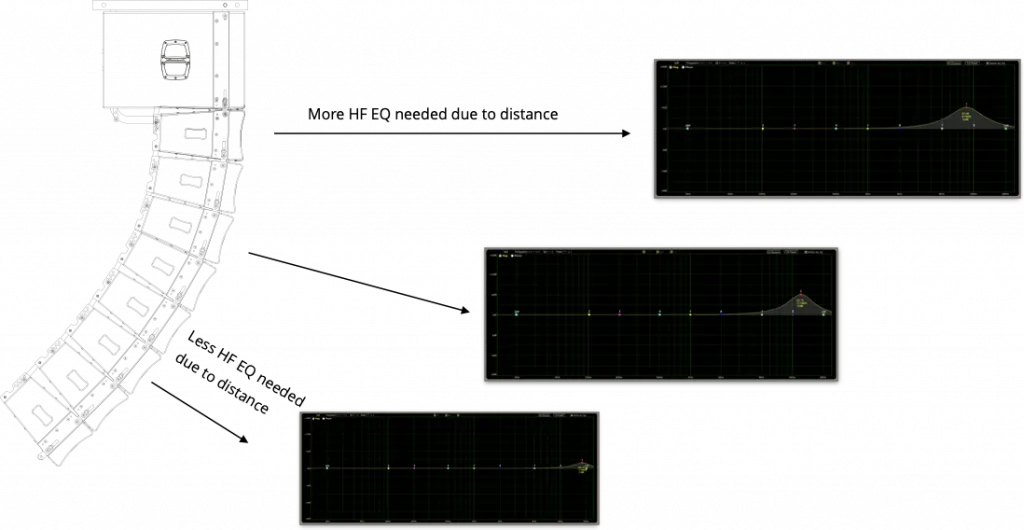

2. Range EQ
Higher frequencies are reduced in energy by distance. This is as a result of air absorption. To compensate for this energy loss over distance, Peaking or Bell filters should be used.
The amount of energy absorbed by air also changes as a result of humidity. So always think about this constantly variable loss (or comparative gain) of HF energy.
3. Shape EQ
The physical shape of the array has a profound impact on its sonic performance. These physical considerations should be compensated for within the DSP EQ to ensure a smooth frequency response.
a) A flat array using minimum splay angles between the elements will naturally have a boost in the mid frequency (around 630 Hz – 2 KHz)
b) A curved array will have a reduction in mid frequency bands (around 630 Hz – 2 KHz)
4. Sub Placement
Having the subwoofers physically aligned in the same plane as the array elements is the ideal scenario. However, this is not always possible. In situations where the subwoofers and the array elements cannot be physically aligned, a DSP delay should be used.
1 ms (milliseconds) delay for every 0.34 m (@15° C) can get you an acceptable result.
It is highly recommended that further fine-tuning should be done by using one of the many industry standard measurement software systems, reference microphones and soundcards.
Final Summary
To achieve peak audio performance, a line array requires precise physical positioning and active DSP tuning. Simply hanging the loudspeakers is not enough; the system must be calibrated to counteract natural acoustic changes caused by atmospheric conditions, driver coupling, physical array geometry, and spatial alignment. By actively managing low-frequency build-up (Array Scaling), boosting high frequencies lost over distance (Range EQ), flattening midrange spikes or dips caused by splay angles (Shape EQ), and precisely time-aligning subwoofers (Sub Placement), audio engineers can ensure smooth, clear, and high-impact sound coverage across the entire venue.
Frequently Asked Questions
Why does adding more line array elements increase the bass response?
Low-frequency sound waves are long and combine coherently when multiple speaker cabinets are stacked close together (acoustic coupling). As an array grows in size, low-frequency energy builds up proportionately, which requires targeted low-frequency (LF) reduction in your DSP to keep the sound balanced.
How do weather conditions like humidity impact high frequencies over distance?
Air absorbs high-frequency sound energy as it travels, and the rate of absorption changes based on atmospheric conditions like humidity and temperature. To compensate for this energy loss over long throw distances, peaking or bell filters are used to restore clarity, and these EQ adjustments should be checked as weather conditions shift.
How does array shape affect the midrange frequencies?
The physical curvature of the array directly alters its frequency profile:
Flat/Straight Arrays: Minimal splay angles cause driver overlap, naturally boosting mid-frequencies between 630 Hz and 2 kHz.
Curved Arrays: Wider splay angles spread out the acoustic energy, causing a natural drop or dip in that same 630 Hz to 2 kHz midrange zone.
What is the basic rule of thumb for time-aligning out-of-position subwoofers?
If subwoofers cannot be placed in the same physical plane as the main array, apply a DSP delay using the baseline rule of 1 ms of delay for every 0.34 meters (roughly 1.1 feet) of distance offset at 15°C.
Is a distance-based calculation enough to perfectly phase-align subwoofers?
No. Distance calculations provide a solid starting point, but fine-tuning requires specialized tools. Using industry-standard acoustic measurement software, reference microphones, and audio interfaces allows you to measure real-time phase alignment across the crossover region for accurate results.
Why is DSP tuning necessary if a line array is already high quality?
Even top-tier speakers are subject to physical laws like atmospheric HF loss, spatial delay differences, and cabinet coupling. DSP tuning acts as the corrective bridge, allowing you to tailor the array’s output to its physical geometry and the acoustic reality of the room.
