How’s Your Subwoofer Low End?
How’s Your Subwoofer Low End?
Table of Contents
Intro
Good low end is about more than simply adding more subwoofers.
A well-designed subwoofer system should provide the low-frequency extension, output and coverage required for the application. Whether you’re working in a small club, a theatre, a live music venue or a large outdoor event, getting the low end right starts with choosing and configuring the system to suit the environment.
What Makes a Good Subwoofer System?
A good subwoofer system should deliver deep, powerful and controlled low frequencies with enough output and headroom for the application.
The amount of output and headroom required depends on the application. A subwoofer system operating close to its limits has less capacity to reproduce sudden peaks cleanly, while sufficient headroom allows the system to deliver powerful low frequencies without excessive strain.
The T-SUB-AX18B is a versatile 18″ active subwoofer designed to deliver high-impact bass across a range of smaller applications, from live sound performance to DJ systems. Its compact, active design makes it a practical choice where strong low-frequency performance is required without the complexity of a larger system.
There is no single ‘best’ subwoofer for every application. The right choice depends on factors such as the required SPL, venue size and location, whether an active or passive system is required, and budget. A compact subwoofer may be ideal for a small installation, while a larger system with greater output and headroom may be needed for large-scale events.
Key Takeaway
Good low end is about controlled, consistent and appropriate bass, not simply maximum SPL.
How Many Subs Do You Need?
The number of subwoofers you need depends on how much low-frequency output and coverage your application requires. Audience size, desired SPL, the type of music, and the size and capability of the main loudspeaker system all influence the amount of subwoofer capacity required.
The venue itself also matters. Indoor spaces can behave very differently from outdoor environments, while the physical dimensions and acoustics of a room can create areas where low frequencies build up or cancel out. You also need to consider how evenly you want low-frequency energy distributed across the audience rather than simply how loud the system needs to be.
More subwoofers aren’t automatically better, either. Increasing the number of cabinets changes how low-frequency energy couples together and can allow greater output, headroom and coverage when configured correctly. The goal is to use enough subwoofers to achieve the required performance.
For larger systems, determining the required number of subwoofers is closely linked to overall system design. Our Line Array Tuning Tips guide explores related topics including array scaling, range EQ, shape EQ and subwoofer placement, helping you understand how different elements of a system work together.
Key Takeaway
There’s no one-size-fits-all approach to subwoofer quantities. The right number depends on your system, application, audience size and desired output.
More Subs, Different Behaviour
Coupling is not simply a level increase (+6 dB); it changes how the acoustic source behaves. As cabinets are added, the effective radiating area, source dimensions, radiation impedance and directivity all change. This is an important concept that is often overlooked when discussing subwoofer summation.
Care must be taken when deploying multiple subwoofers, as their interaction can significantly alter system performance. The frequencies affected depend on the subwoofer type, cabinet dimensions and spacing between individual units. Adding more subwoofers does not automatically mean better performance. Even when cabinets are positioned closely enough to achieve effective coupling and minimise interference, the combined system will have a different frequency response to a single subwoofer.
As multiple sources interact acoustically, coupling can increase radiation efficiency, extend effective acoustic summation and alter the overall spectral balance. A cluster of coupled subwoofers effectively behaves as a larger acoustic radiator, with different directivity and frequency response characteristics. It should therefore be treated as a different acoustic source, rather than simply a louder version of a single enclosure.
When configured correctly, increasing the number of cabinets can provide greater output, increased headroom and more consistent coverage. However, inappropriate deployment can result in uneven low-frequency distribution. The goal is to use the optimum number of subwoofers for the required output, coverage and directivity, while maintaining control of their acoustic interaction.
Key Takeaway
Adding more subwoofers changes more than just the volume. Their acoustic interaction affects frequency response, directivity and coverage, so the number, spacing and configuration of cabinets must be carefully considered.
Subwoofer Placement & Configuration

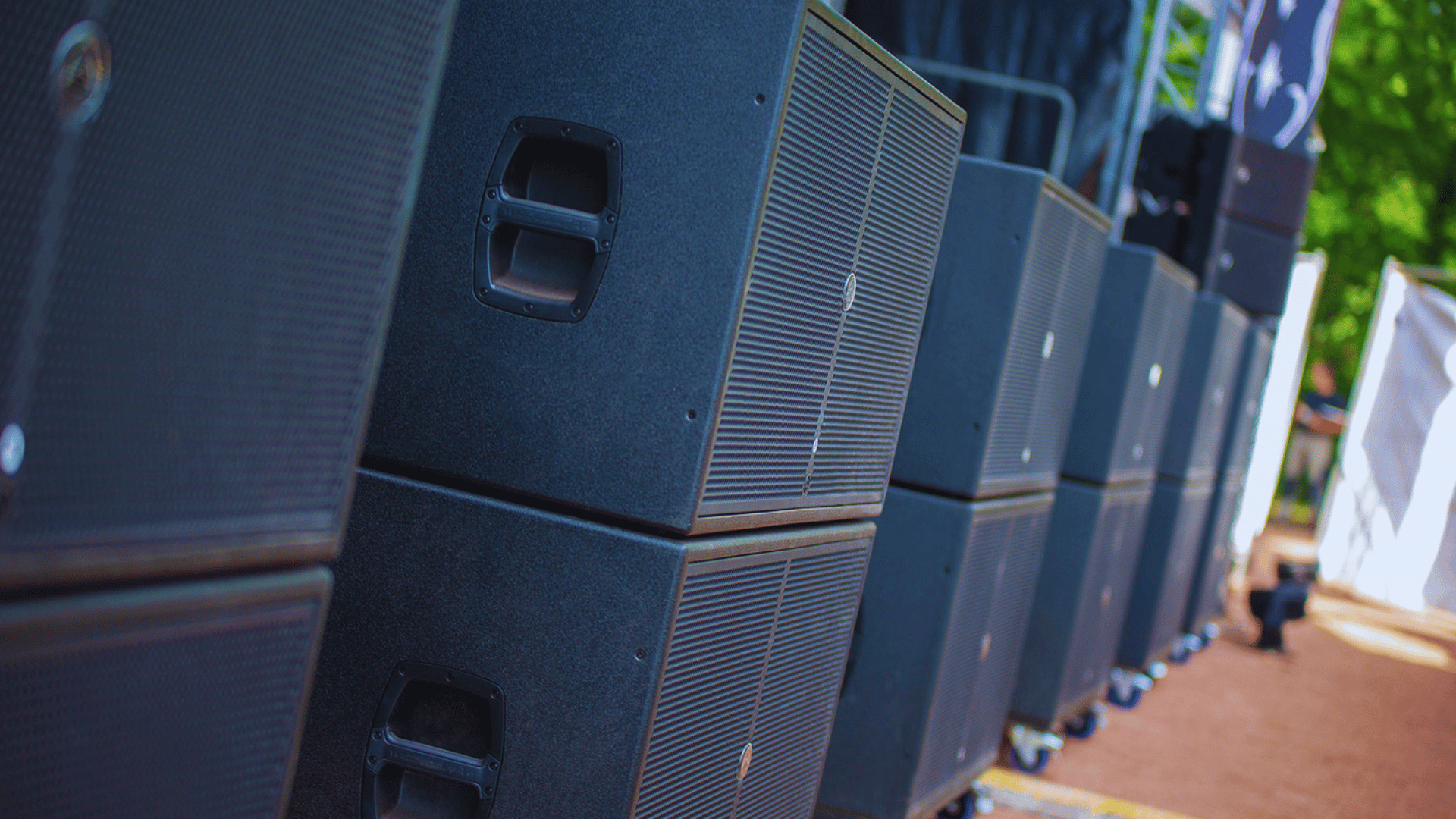

Where you place your subwoofers can be just as important as how many you use. Ground-stacked and flown subwoofers interact with their surroundings differently, while centre-clustered and left/right configurations produce different patterns of low-frequency coverage.

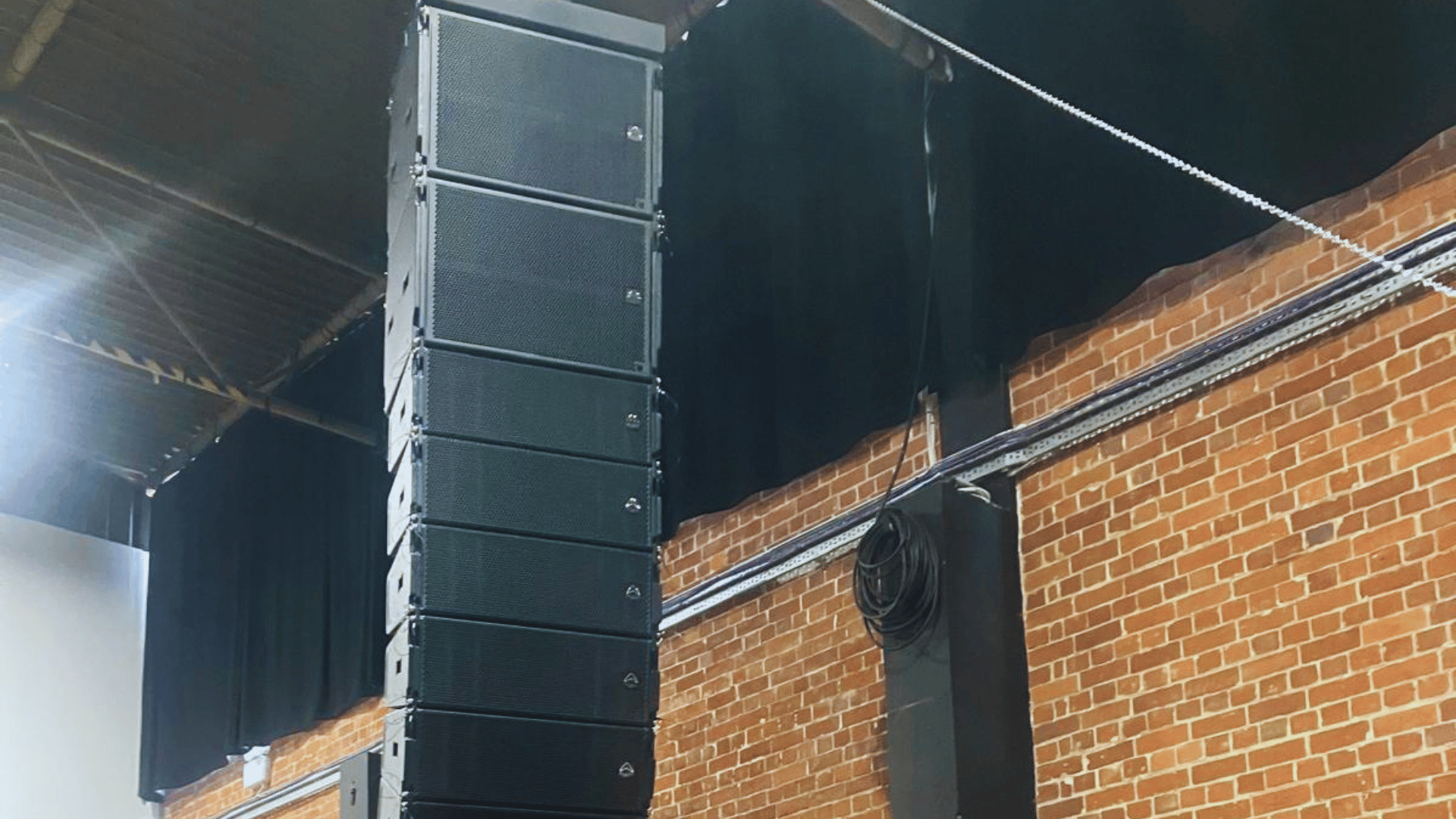

Placing subwoofers close together allows their acoustic output to couple, increasing low-frequency output and helping create a more predictable coverage pattern. Other configurations, such as cardioid and end-fire arrays, can be used to control where low-frequency energy travels, helping reduce unwanted bass on stage or behind the system. The XLA-118SUB, for example, is a flying 18″ subwoofer designed to support Inverted Stack Gradient Array (iSGA) configurations, providing precise cardioid performance and improved low-frequency directivity.
Physical positioning therefore has a direct effect on what the audience hears. The objective isn’t simply to make the bass louder, but to create consistent low-frequency coverage across the listening area while managing unwanted energy elsewhere. Good placement and configuration can make a significant difference before any DSP or EQ is applied.
Key Takeaway
Subwoofer placement has a significant impact on low-frequency coverage and performance. The right configuration can help deliver more consistent bass across the audience.
Getting Your Low End Right
Getting your low end right requires the subwoofer, main loudspeakers, DSP and amplification to work together as one system. Start with an appropriate crossover point between the subs and mains, then use DSP to manage crossover filters, EQ, limiting and protection. Correct gain structure is also essential to ensure the system can reach its required output without unnecessarily driving individual components into their limits.
Time alignment and phase relationships should then be checked so that the subwoofers and main loudspeakers work together rather than cancelling each other around the crossover region. The subwoofer system should be matched to the characteristics and capabilities of the main loudspeakers, rather than treated as a completely separate system.
The environment should also be considered when selecting the right subwoofer. For outdoor events or permanent installations exposed to the elements, protection from water and environmental conditions becomes an important part of system design. The WLA-218BXF, for example, combines two 18″ drivers with an IPX6-rated enclosure, making it suited to outdoor events and permanent installation applications where robust weather protection is required.
Finally, test the system in the actual environment where it will be used. Walk the room, listen for areas of excessive or weak bass, and make adjustments where necessary. Measurements can provide valuable information, but the final goal is a low end that sounds balanced, controlled and consistent throughout the audience area.
Key Takeaway
Great low end is about more than the subwoofer itself. Correct crossover, DSP, alignment, EQ and system configuration all play an important role in achieving the best performance.
Final Summary
Great low end comes from the right subwoofers, the right number of cabinets, the right configuration and the right system tuning. Start by understanding the requirements of the application, then consider output, frequency response, placement, coverage and system integration. When all of these elements work together, the result is a more powerful, controlled and consistent sound system.
Frequently Asked Questions
How many subwoofers do I need?
There is no fixed number of subwoofers required for every system. The ideal quantity depends on factors such as the size of the audience, application, desired output, main loudspeakers and the environment in which the system is being used.
Should subwoofers be placed together or separately?
In many applications, grouping subwoofers together can help increase low-frequency output and improve consistency. However, the best configuration depends on the system and coverage requirements. Cardioid and other directional configurations can also be used to control where low-frequency energy is directed.
What is a cardioid subwoofer configuration?
A cardioid configuration uses multiple subwoofers, positioned and processed in a specific way, to reduce low-frequency energy travelling towards the rear of the system. This can help reduce unwanted bass on stage or in other areas behind the subwoofers.
What frequency should I set my subwoofer crossover to?
There is no single crossover frequency that works for every system. The appropriate setting depends on the subwoofer, main loudspeakers and overall system design. A correctly chosen crossover helps the subwoofer and main loudspeakers work together smoothly.
Does adding more subwoofers always make a system louder?
Adding subwoofers can increase available output and headroom, but simply adding more boxes does not automatically guarantee better performance. Subwoofer placement, configuration, processing and system alignment all have an important role to play.
