DP SERIES
LIGHT ON WEIGHT. HEAVY ON POWER
- New model – DP-4030!
- Super light weight
- 4 channel models
- Stable down to 2Ω (*except DP-4030)
- Drive multiple 8Ω and 16Ω loudspeakers
- 1 * Stereo model generating 6800 watts @ 8 Ω BTL.
- Ultra-quiet variable speed fans and advanced protection circuitry
- 70 V / 100 V compatible models
- Power Factor Correction for increased efficiency

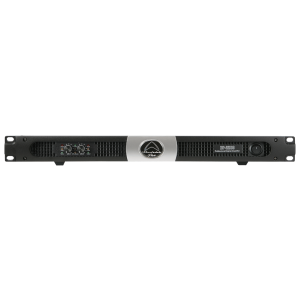

DP-2200
2 x 4760 watts at 2 Ohm
- 2 channels
- 8 Ohm 2 x 2000 Watts
- 4 Ohm 2 x 3400 Watts
- 2 Ohm 2 x 4760 Watts
- 16 Ohm Bridged 1 x 4000 Watts
- 8 Ohm Bridged 1 x 6800 Watts
- 4 Ohm Bridged 1 x 9520 Watts

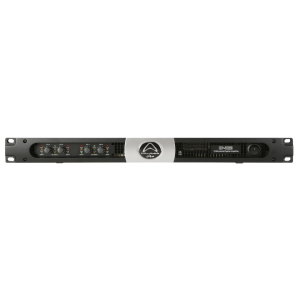

DP-4120
4 x 3468 watts at 2 Ohm
- 4 channels
- 8 Ohm 4 x 1200 Watts
- 4 Ohm 4 x 2040 Watts
- 2 Ohm 4 x 3468 Watts
- 16 Ohm Bridged 2 x 2400 Watts
- 8 Ohm Bridged 2 x 4080 Watts
- 4 Ohm Bridged 2 x 6936 Watts

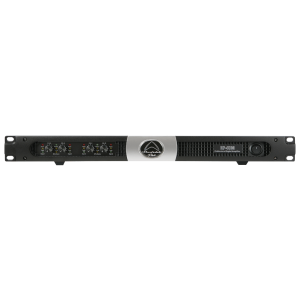

DP-4100
4 x 2890 watts at 2 Ohm
- 4 channels
- 8 Ohm 4 x 1000 Watts
- 4 Ohm 4 x 1700 Watts
- 2 Ohm 4 x 2890 Watts
- 16 Ohm Bridged 2 x 2000 Watts
- 8 Ohm Bridged 2 x 3400 Watts
- 4 Ohm Bridged 2 x 5780 Watts

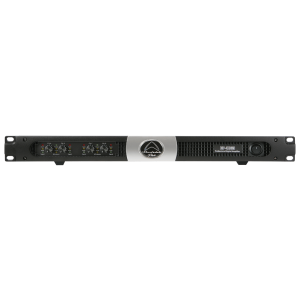

DP-4065
4 x 1870 watts at 2 Ohm
- 4 channels
- 8 Ohm 4 x 650 Watts
- 4 Ohm 4 x 1100 Watts
- 2 Ohm 4 x 1870 Watts
- 16 Ohm Bridged 2 x 1300 Watts
- 8 Ohm Bridged 2 x 2200 Watts
- 4 Ohm Bridged 2 x 3740 Watts

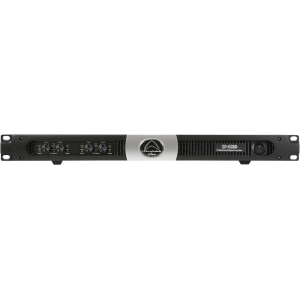

DP-4035
4 x 1011 watts at 2 Ohm
- 4 channels
- 8 Ohm 4 x 350 Watts
- 4 Ohm 4 x 595 Watts
- 2 Ohm 4 x 1012 Watts
- 16 Ohm Bridged 2 x 700 Watts
- 8 Ohm Bridged 2 x 1190 Watts
- 4 Ohm Bridged 2 x 2023 Watts

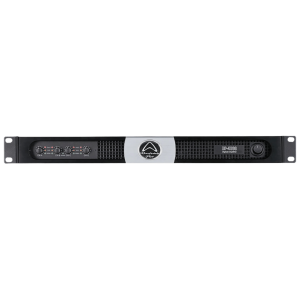

DP-4030
4 x 450 watts at 4 Ohm
- 4 channels
- 8 Ohm 4 x 300 Watts
- 4 Ohm 4 x 450 Watts
- 16 Ohm Bridged 2 x 600 Watts
- 8 Ohm Bridged 2 x 900 Watts
Compare The Series
Stable down to 2 Ohms (*except DP-4030) and with huge power output.
The power output figures of DP series are staggering. The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.
This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.
Lets make it easy…. and call it PFC instead!
PFC, combined with the Switching mode power supplies inside DP series amps, increases the amplifier efficiency and regulates to ensure smooth power delivery even with huge fluctuations in the AC supply.
In the real world, it makes a big difference to amplifier performance and stability.
