DELTA-X SERIES
Refinement in detail.
- Birch plywood construction
- Re-engineered robust crossover design
- Suitable for touring, rental and installation
- 1.4″ Exit, 2″ Titanium Diaphragm Compression Drivers
- Bi-amp and Passive mode switching
- Extremely durable Tough-Tone finished cabinets
- Multiple M6, M8 & M10 rigging points & integral tripod adapter
- Trapezoid shape for arrays and stage monitoring
- Dual spider technology on 18″ woofers
- Rubberised 4-way handles

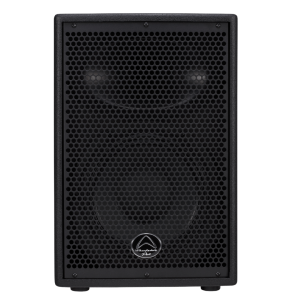

300 Watts AES (RMS)
- 10″ 2-way passive
- 1.75″ voice coil HF driver
- 2.5″ LF voice coil
- 300 watts AES (RMS)
- 600 watts Programme
- 1200 watts Peak
- 129 dB Max SPL @ 1 meter

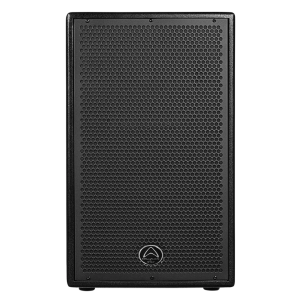

400 Watts AES (RMS)
- 12″ 2-way passive
- 2.0″ voice coil HF driver
- 3.0″ LF voice coil
- 400 watts AES (RMS)
- 800 watts Programme
- 1600 watts Peak
- 129 dB Max SPL @ 1 meter

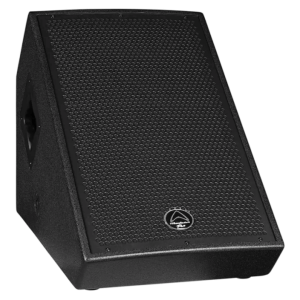

400 Watts AES (RMS)
- 12″ floor monitor
- 2.0″ voice coil HF driver
- 3.0″ LF voice coil
- 400 watts AES (RMS)
- 800 watts Programme
- 1600 watts Peak
- 129 dB Max SPL @ 1 meter

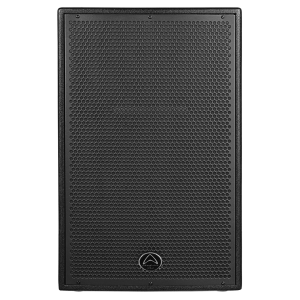

500 Watts AES (RMS)
- 15″ 2-way passive
- 2.0″ voice coil HF driver
- 3.0″ LF voice coil
- 500 watts AES (RMS)
- 1000 watts Programme
- 2000 watts Peak
- 131 dB Max SPL @ 1 meter

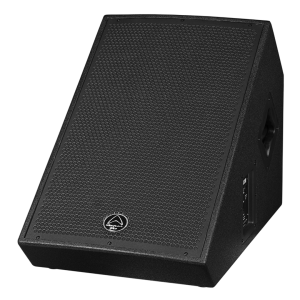

500 Watts AES (RMS)
- 15″ floor monitor
- 2.0″ voice coil HF driver
- 3.0″ LF voice coil
- 500 watts AES (RMS)
- 1000 watts Programme
- 2000 watts Peak
- 131 dB Max SPL @ 1 meter

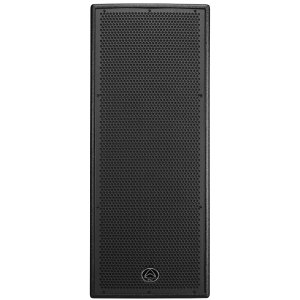

800 Watts AES (RMS)
- Dual 12″ quasi 3-way passive
- 2.0″ voice coil HF driver
- 3.0″ LF voice coils
- 800 watts AES (RMS)
- 1600 watts Programme
- 3200 watts Peak
- 135 dB Max SPL @ 1 meter

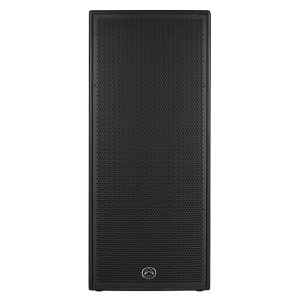

1000 Watts AES (RMS)
- Dual 15″ quasi 3-way passive
- 2.0″ voice coil HF driver
- 3.0″ LF voice coils
- 1000 watts AES (RMS)
- 2000 watts Programme
- 4000 watts Peak
- 137 dB Max SPL @ 1 meter

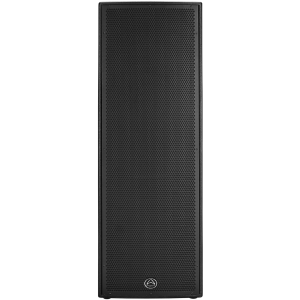

Discontinued
- Dual 15″ quasi 3-way passive
- 2.0″ voice coil HF driver
- 3.0″ LF voice coils
- 1000 watts AES (RMS)
- 2000 watts Programme
- 4000 watts Peak
- 137 dB Max SPL @ 1 meter
- Bigger cabinet

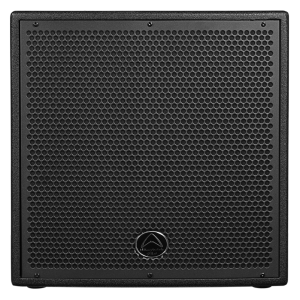

700 Watts AES (RMS)
- 15″ Subwoofer
- 4.0″ voice coil
- 700 watts AES (RMS)
- 1400 watts Programme
- 2800 watts Peak
- 132 dB Max SPL @ 1 meter

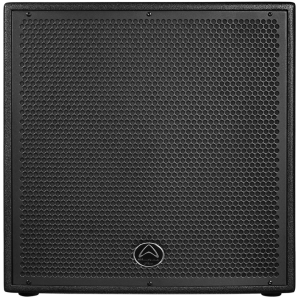

800 Watts AES (RMS)
- 18″ Subwoofer
- 4.0″ voice coil
- 800 watts AES (RMS)
- 1600 watts Programme
- 3200 watts Peak
- 134 dB Max SPL @ 1 meter
1600 Watts AES (RMS)
- Dual 18″ Subwoofer
- 4.0″ voice coils
- 1600 watts AES (RMS)
- 3200 watts Programme
- 6400 watts Peak
- 138 dB Max SPL @ 1 meter
- Parallel (4Ω) and Discrete (2 x 8Ω) modes
800 Watts AES (RMS)
- 18″ folded horn subwoofer
- 4.0″ voice coil
- 800 watts AES (RMS)
- 1600 watts Programme
- 3200 watts Peak
- 141 dB Max SPL @ 1 meter
Compare The Series
DELTA-X builds on the global success of the Wharfedale Pro Delta series.
Constructed from 15mm plywood and covered in the highest quality Rhino Rock paint, the new DELTA-X models are instantly recognisable by their engraved iconic Wharfedale Pro ‘boomerang’ logo on their cabinets. The fresh cosmetic design however is not the only improvement the engineering team have made.
Internally DELTA-X also has a new crossover design and construction. Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long term performance and reliability – even at the highest of volumes.

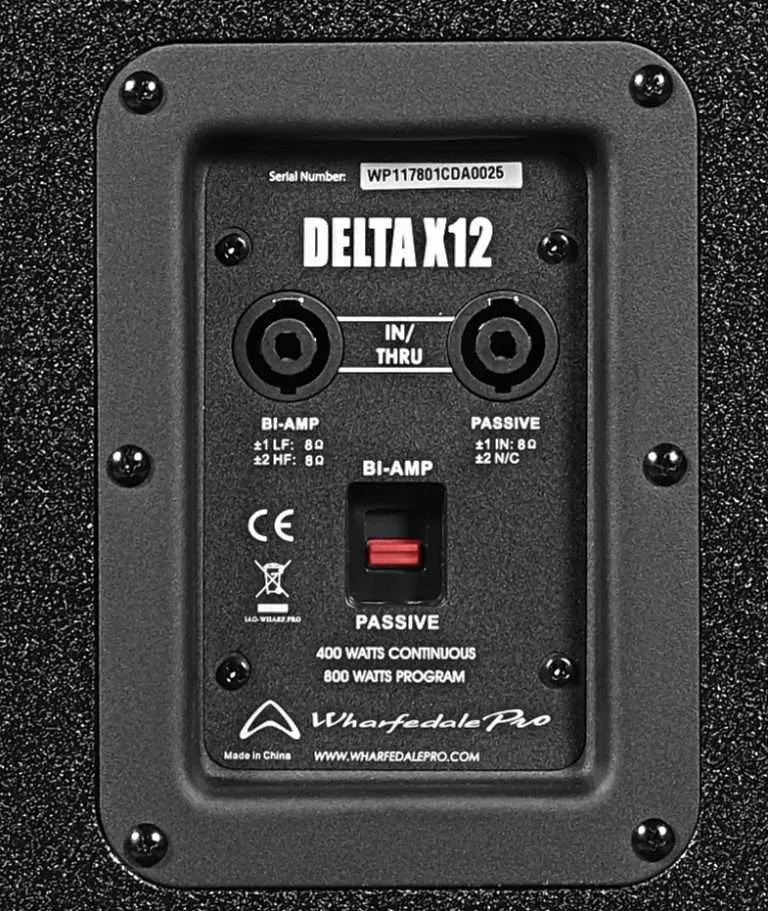

With rear panel switching, DELTA-X can operate in either Bi-Amp or Full range modes. This routing flexibility allows for DELTA-X systems to be refined using multiple amplifiers and external crossovers.
Custom Wharfedale Pro transducers have also been selected. High output, low physical distortion cast frame woofers deliver unparalleled low frequency response. With the exception of the DELTA-X10, 2” titanium compression drivers are coupled to 90° x 45° elliptical waveguides for impressive output level and smooth HF dispersion.

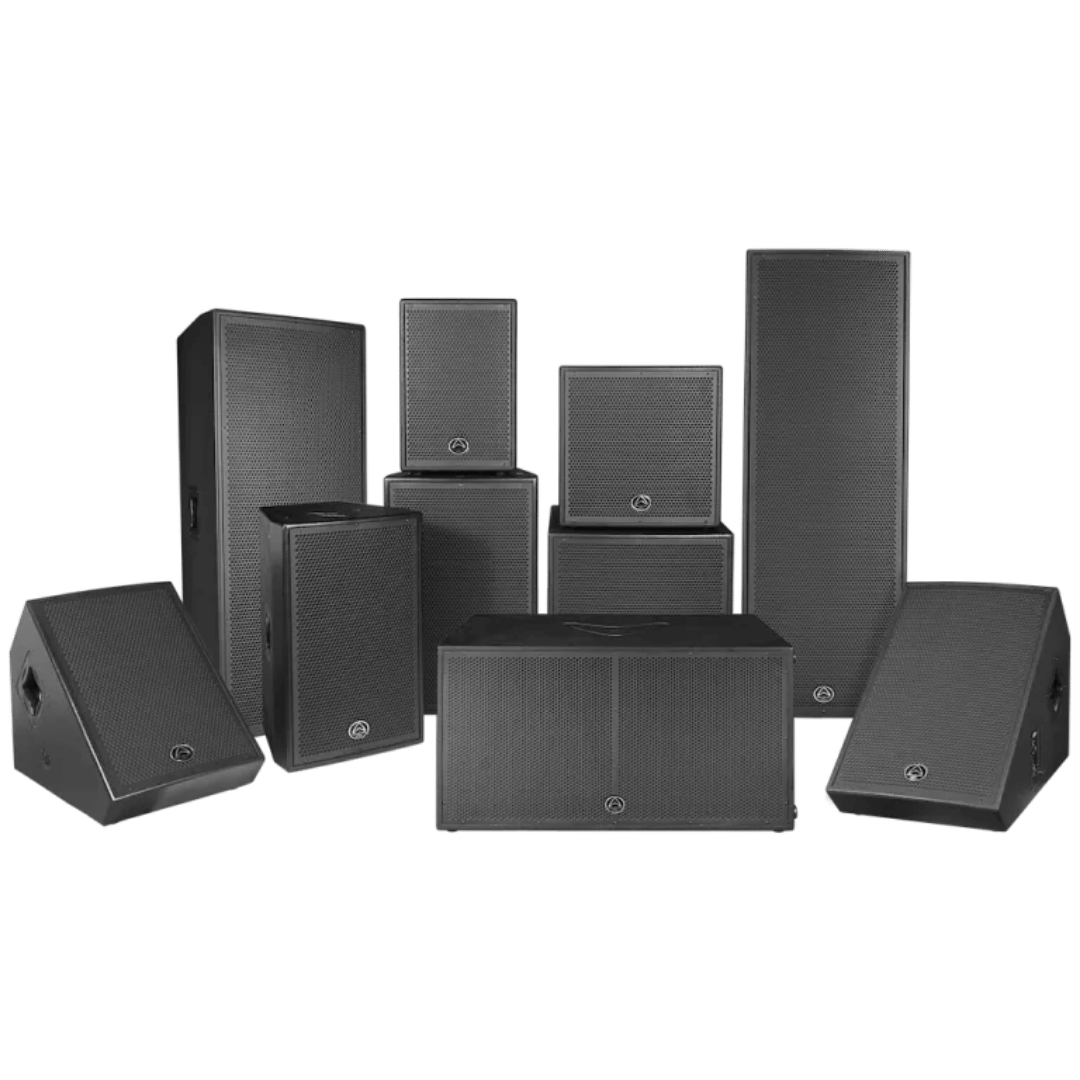

With a full lineup of 12 models, ranging from the 300w RMS Delta-X10 to the 1600w RMS Dual Chamber 2 x 18” DELTA-X218 subwoofer, DELTA-X models are perfect for fixed installation and touring applications.
All DELTA-X models use premium Baltic birch plywood construction.
Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character.
As with all Wharfedale Pro PA systems, years of expertise is behind a loudspeaker built to last, with thanks to our high standards of quality control.
The DELTA-X series are coated in the highest quality polyurea-based Tough-Tone paint finish The properties of Tough-Tone paint also allow for easy touch-ups and cleaning, ensuring that minor imperfections can be corrected, further prolonging the longevity of our already reliable products.
DELTA-X features a routed Wharfedale Pro logo.
It is a logo to be proud of. A logo that lets your audience know that the sound of your even will be of the highest possible quality.

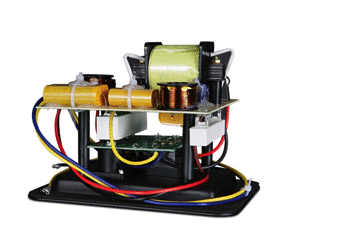

Internally DELTA-X models have a new crossover design and construction.
Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long term performance and reliability – even at the highest of volumes.
In BI-AMP mode, two power amplifier channels can be used, one for each section of the loudspeaker (HF compression driver and LF transducers). DSP (Digital signal processing) is used to separate the audio signal into specific frequency bands for each amplifier channel, powering only the corresponding driver section inside the loudspeaker. This gives you the advantage of being able to select the optimal power specifications and use independent limiter and EQ settings for each driver, resulting in more granular system control and a safer, more efficient, and protected system.
In PASSIVE mode, a single amplifier channel can be used to power all drivers inside the loudspeaker. The full frequency range is put into the loudspeaker and the loudspeakers’ internal passive crossover separates the frequencies, delivering the right frequencies to the right driver. In the example of a 2-way passive loudspeaker, this means that the single amplifier channel is powering both the HF compression driver and the LF transducers. The internal crossover takes care of both the frequency and power separation.
The Wharfedale Pro Preset Library includes factory presets for both BI-AMP and PASSIVE modes, these must be used for optimal loudspeaker performance and protection.
